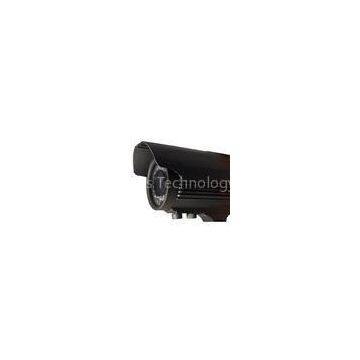

DC 36V 700TVL IP66 sunproof day night sony effio ccd Color CCD Security Cameras, NTSC system camera
Specifications
Security Camera
1.Night vision distance 30m
2.Using the White-light Tech
3.700TVL sony effio ccd
4.Using Oversea CS lens
Feature:
1. Power in DC 12V-36V, Using Oversea lens.
2. 700TVL built-in 36s Ø5mm led
3. 6X Manual Focusing
4. Use of good quality aluminum alloy material, Easy for heat emissions
5. Waterproof sunproof design for outdoor application
6. Depart Led, antifogging and anti-reflection
7. Super Night vision technology ΙΙ (SNVΙΙ)
Constant power and wide input voltage (C):
1. In the range of 12V-36V DC input voltage, this tech can keep the input power and output power constant.
2. Completely eradicate the damage of the unstable input voltage (such as the surge, etc.) to the camera.
3. This tech can make the Camera long-term stable work in the range of 12V-36V DC input voltage, which is the best solution for centralized power supply.
Day and Night Color CCD Camera Technical Parameter:
|
MODEL |
CL-832K/CW |
CL-832A/CW |
CL-832E/CW |
|
TV System |
PAL/NTSC |
||
|
Pixel |
PAL:500(H)X582(V)NTSC:510(H)X492(V) |
PAL:752(H)X582(V)NTSC:768(H)X494(V) |
PAL:976(H)X582(V)NTSC:976(H)X494(V) |
|
Pickup device |
1/3\"SONY Super HAD CCD II |
1/3\"Pixel ADS CMOS |
1/3\"Sony Effio |
|
Scanning area |
4.8mm(H)*3.6mm(V) |
||
|
Horizontal resolution |
520TVL |
600TVL |
700TVL |
|
Minimum illumination |
0 LUX(IR ON) |
||
|
S/N ratio |
>48dB |
||
|
Gamma characteristic |
0.45 |
||
|
Electronic shutter |
PAL:1/50~1/100000sec |
||
|
Gain control |
Auto |
||
|
Back light compensation |
Auto |
||
|
White balance |
Auto |
||
|
Synchronous system |
Internal synchronization |
||
|
Operating temperature |
–20~50°C |
||
|
Protecion rate |
IP66 |
||
|
Lens mount |
3.6/6/8/12/16mm (Optional) |
||
|
Power in |
DC12V 1A |
||
|
Video out |
1.0Vp-p/75Ω(BNC) |
||
|
Dimensions(mm) |
77*124 |
||
|
Weight(g) |
375 |
