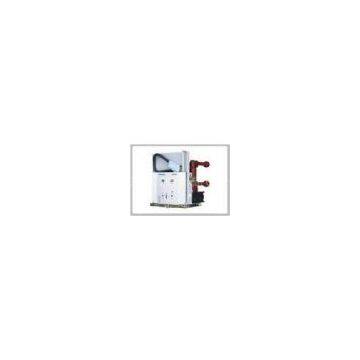

IEC56 / DL403 12kv VMD4 Medium Voltage Switchgears Systems for Cable, Trolly Wires

NO

Item

Unit

Technical Date

1

Rated voltage

kV

24

2

Rated insulating level

Rated short time power

frequency withstand voltage(1min)

65

Rated lighting inpulse

withstand voltage (peak value)

125

3

Rated Frequency

Hz

50

4

Rated current

A

630

5

Rated short circuit breaking current

kA

20

6

Rated short time withstand current

20

7

Rated peak withstand current

50

8

Rated short-circuit closing current (peak value)

50

9

4S rated short-time withstand current  4s

20

10

Rated Dynamic Current

50

11

Rated making surge current of capacitor bank

12.5(The frequency

 is less than 1000Hz)

12

Rated breaking current of single/symmetrical capacitor bank

A

630/400

13

Duration of rated short-circuit current

S

4

14

Power frequency withstand voltage of secondary circuit

V

2000

15

Rated operationl voltage

Making coil

AC110/220   DC110/220

Breaking coil

AC110/220   DC110/220

Energy-storage motor

AC110/220   DC110/220

16

Making time  (under Rated voltage)

ms

≤60

17

Breaking time(under Rated voltage)

≤45

18

Permitted abrasion thickness of moving and fixed contacts

mm

3

19

Energy storage times

S
