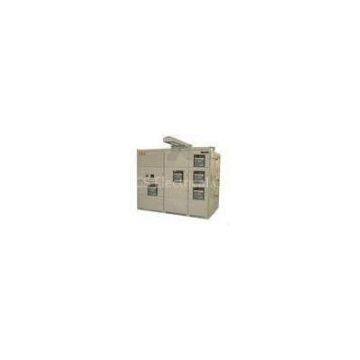

2.GCS Indoor Low Voltage Withdrawable Switchgear
3.ISO9001:2008 IQNet&CQC

II Description of GCS switchgear

The product is designed to meet the requirements of the electrical users with high technical performances. It adapts to the development and needs of electricity market and also competes with the existing low-voltage switchgears. At present the product has been used widely in power plants, petroleum, chemicals, metallurgy, textiles and high-rise architecture, and the distribution systems in other industries. The product services in the power system of generation and supply of rated voltage of 380 V (400), (600), rated current of 4000 A, below three-phase AC, frequency of 50 (60) Hz, and the following of, the electricity supply system of distribution, motor centralized control and reactive power compensation. The product meets the standards of GB7251 JB/T9661 and IEC60439-1.      main distribution panel

III Service conditions of GCS switchgear

Normal service conditions of switchgear as follows:

This product should not be used under conditions of fire, explosion, earthquake and chemical corrosion environments.

Special service conditions

Each special service condition should be proposed in advance and confirmed by the manufacturer and user.

The dielectric strength of the air will be reduced in when altitude is over 1000m at site.

If the ambient temperature is over the maximum degree, the capacity of the using current must be lower than the designed current’s for both main bus bar and branching bus bar. The installation of aerator is propitious to reduce heat.

V  Technical specification of GCS switchgear
