Product Details
| Brand Name | zhongcheng | Place of Origin | China | |
Product Description

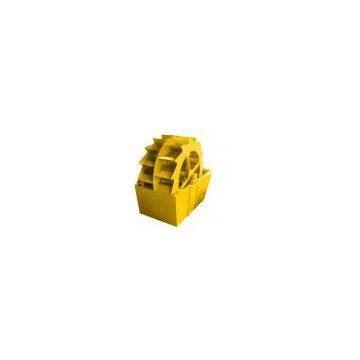

1. Sand Washing Machineintroduction:
Independently developed sand washing machine with Zhongcheng company patent. Sand extractor machine or wheel sand washer equipment used to remove dust in sand. It aims at improving the quality of sand.
The sand washing machine drives the impeller in the water groove to move like a circle transmitted by electric motor and decelerator, and then mixes, overturns, cleans and discharges the sand or slag pellets in the water groove.
2. Sand Washing Machine features:
1.Itis of simple structure.The bearing device of impeller drive is separated from water and materials with water, to avoid in a large degree that the bearings are damaged by being soaked with water, sand or some polluted things.
2.There is little loss for medium-sized and fine sand and stone powder. The grade and the fineness of the sand for construction after being washed can be up to the national standards, such as sand for construction and cobble and broken stones for construction
3. Technical parameters of Sand Washing Machine:
|
sand washing machine technical parameters |
|||
|
Type |
XSD2610 |
XSD2816 |
XSD3016 |
|
Impeller specifications (mm)(diameter×width) |
φ2600×1000 |
φ2800×1600 |
φ3000×1600 |
|
Diameter speedr/min |
1.178 |
1.177 |
1.179 |
|
Productivity(t/h) |
20-50 |
30-60 |
50-120 |
|
Feeding size(mm) |
≤10 |
≤10 |
≤10 |
|
Power(kw) |
5.5 |
7.5-11 |
11-15 |
|
Reducer model |
ZQ500-50-I-Z |
ZQ650-50-I-Z |
ZQ650-50-I-Z |
|
Envelop dimensions(mm) |
3255×1982×2690 |
3540×3000×2880 |
3845×3000×3080 |
