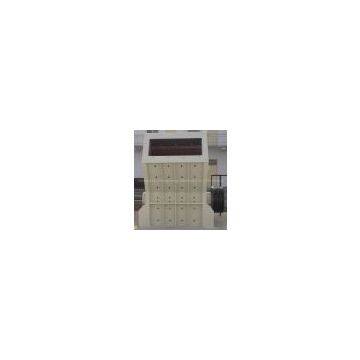

ISO Certificate Impact Stone Crusher Drawing From China Manufacturer
1.Usage and Application of Impact Crusher:
Impact crusher is used in mineral dressing, chemical industry, cement, building materials, fire-proof materials, ceramics, glass and other industries, for crushing medium hardness ore, such as limestone, quicklime, slag, calcium salt, clay mine, building materials, coke, coal and other materials which with the compression strength up to 350Mpa
2.Features of impact crusher:
(1) can be crushed for hard rocks
(2) connection with locking sleeve assembly
(3) the blow bar with high chrome
(4) hydraulic or hand opening
(5) impact plate with special shape
3. Working Principle of impact crusher:
When the impact crusher works, the motor drives the rotor rotate of the impact crusher with high speed, on the rotor where installed the hammers. When the materials get into the area which the hammers effect, under the impact function of the hammer at a high speed, the materials are thrown to the impact device above the rotor continuously. And then the materials are rebounded from the impact liner to the area where the hammers effects for being recrushed. The materials from large to small all to be crushed at the impact chamber repeatedly. The process won’t stop till the material are crushed to the required size and then discharged from outlet of the impact crusher.
4.Main Technical Paraneters of impact crusher:
|
Type |
Spec. (mm) |
Feeding opening(mm) |
Max. feeding size(mm) |
Production capacity(t/h) |
Power(kW) |
Weight(t) |
|
PF0607 |
644X740 |
320X770 |
100 |
10-20 |
30 |
5.6 |
|
PF1007 |
1000×700 |
400×730 |
300 |
30-70 |
37-55 |
9.5 |
|
PF1010 |
1000×1050 |
400×1080 |
350 |
50-95 |
55-75 |
14 |
|
PF1210 |
1250×1050 |
400×1080 |
350 |
70-140 |
110-132 |
17 |
|
PF1214 |
1250×1400 |
400×1430 |
350 |
130-180 |
132-160 |
22 |
|
PF1315 |
1320×1500 |
860×1520 |
500 |
160-250 |
180-260 |
26 |
|
PF1320 |
1320×2000 |
860×2030 |
500 |
300-350 |
300-375 |
30 |
Service Promise:
Before-sale services: We guide customers to choose the best applicable device type and provide the advanced, energy-saving and practical technological process, and also we are responsible for the site planning and design.
On-sale services: products must be inspected strictly before sell, customers are invited to simulate and test machine on-the-spot and raise objections. We will organize delivery according to the clauses stipulated in the contract.
After-sale services: Our Company will send professional engineers to guide installation, debugging and training operators until customers are fully satisfied. Moreover, we can design and manufacture products according to customers’ specific requirement.
