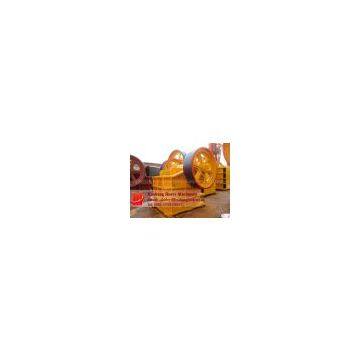

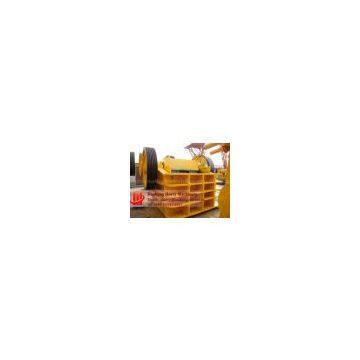

Help CenterMining Jaw Crusher/stone Crusher Machine for Mining
Related Products
-
2013 Granite Jaw Crusher/granite Crusher Machine With Reasonable PriceUS$ 2000 - 20000MOQ: 1 Set -
Professional Hammer Crusher/heavy Hammer Crusher for SaleUS$ 1000 - 5000MOQ: 1 Set
-
Small Hammer Crusher/mini Hammer Crusher Price From ChinaUS$ 1000 - 5000MOQ: 1 Set
-
Double Roller CrusherUS$ 2000 - 10000MOQ: 1 Set
-
Single Roller Metal Crusher/metal Crushing Machine for SaleUS$ 2000 - 10000MOQ: 1 Set
Working principle and structure of crusher machine for stone ore/iron ore:
The main structure of the stone jaw crusher are composed of stander, eccentric shaft, belt pulley, flywheel, movable jaw plate, wrist plate ,adjustable gap screw, offsetting spring, fixed jaw plate. The wrist plate also has the effect of guarding.
This Jaw Crusher's crushing style is the type of driving extrusion. The motor drives the belt and belt pulley to make the moveable jaw move through the eccentric shaft. When movable jaw is rising ,the included angle between the wrist plate and movable jaw become bigger to drive the movable plate to be close to the movable plate. At the same time the material is squeezed and rubbed, rolled to achieve multiple crushing.
Main technical parameters:
|
Model |
Max. Feeding Size (mm) |
Discharge Size (mm) |
Capacity (t/h) |
Motor Power (kW) |
Overall Dimensions (mm) |
Weight (t) |
|
PE150x250 |
125 |
10-40 |
1-3 |
5.5 |
896x745x935 |
0.8 |
|
PE250x400 |
200 |
20-60 |
5-20 |
15 |
1150x1275x1240 |
2.8 |
|
PE400x600 |
350 |
40-100 |
15-60 |
30 |
1700x1732x1653 |
6.5 |
|
PE500x750 |
425 |
50-100 |
50-100 |
55 |
2035x1921x2000 |
10.3 |
|
PE600x900 |
480 |
65-160 |
60-130 |
75 |
2290x2206x2370 |
16.5 |
|
PE750x1060 |
630 |
80-140 |
80-180 |
110 |
2620x2302x3110 |
29 |
|
PE900x1060 |
700 |
100-160 |
180-380 |
110 |
2900x2657x2950 |
33 |
|
PE900x1200 |
750 |
95-165 |
140-260 |
110 |
3789x2826x3025 |
54.5 |
|
PE1000x1200 |
850 |
195-265 |
315-550 |
110 |
3335x3182x3025 |
57 |
|
PE1200x1500 |
1020 |
150-300 |
400-800 |
220 |
4200x3750x3820 |
100.9 |
|
PE1500x1800 |
1200 |
135-225 |
350-700 |
280 |
5100x4700x4300 |
132 |
|
PEX250×750 |
210 |
25-60 |
10-40 |
22 |
1667x1545x1020 |
5 |
|
PEX350x750 |
300 |
15-50 |
18-40 |
30 |
1485x1680x1648 |
7 |
|
PEX250x1000 |
210 |
25-60 |
15-50 |
30 |
1550x1964x1380 |
6.5 |
|
PEX250x1200 |
210 |
25-60 |
20-60 |
37 |
1560x2104x1415 |
7.7 |
|
PEX300x1300 |
250 |
25-60 |
16-65 |
55 |
1530x2320x1730 |
11.5 |
|
PEX400x1200 |
350 |
10-19 |
30-80 |
45 |
1628x2270x1651 |
9.5 |
