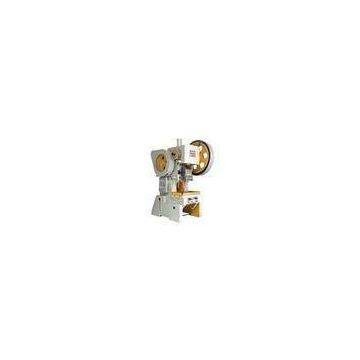

800 KN EMM C-frame Inclinable Pneumatic Power Mechanical Stamping Machine

Name: 800 KN EMM C-frame Inclinable Pneumatic Power Mechanical Stamping Machine
Brand: Yasini
SKU: 147959448
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

Yasini

Place of Origin:

China

Model Number:

EMM23-80

Power Press Machine Company

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

Brand Name Yasini

Place of Origin China

Model Number EMM23-80

Delivery Time:7-25days
Certification:CE,ISO,SGS,FDA

800 KN EMM C-frame Inclinable pneumatic Power mechanical stamping machine 1. mechanical stamping machine
2. Power Press
3. punching machine

Technical Data: mechanical stamping machine

Item	Unit	EMM23-80
Nominal pressure on sliding block(Pe)	KN	800
Nominal pressure stroke(Sp)	mm	7
Slide stroke(S)	mm	120
Stroke frequency	Fast speed	times/ min
Low speed	38
Die height(H2)	mm	440
Die Height Adjustment(t)	mm	90
Distance between slider center and machine(C1)	mm	350
Vertical columns distance(d1)	mm	450
Slider bottom size	L×R(a)	mm	430
F×B(b)	mm	360
Size of handle hole	Diameter(d)	mm	60
Depth(I)	mm	75
Size of worktable	L×R(C)	mm	950
F×B(D)	mm	650
Blanking hole diameter(Φ)	mm	200
Thickness of worktable(H3)	mm	100
Max. inclination angle	Deg	20
Worktable height(H1)	mm	850
Overall size	L×R(A)	mm	2060
F×B(B)	mm	1715
Height(H)	mm	3290
Anchor bolts distance	L×R(a’)	mm	1360
F×B(b’)
