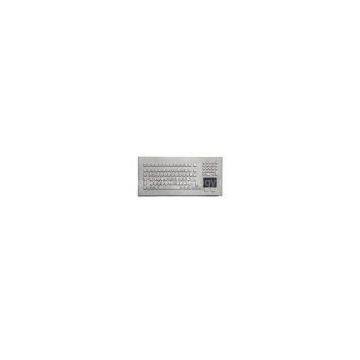

Rack Mount Silicone Switching Elements USB / PS2 Output Industrial Keyboard With Touchpad

MAIN FEATURE

¨          Specially designed for harsh environment, use the brushed stainless steel material, and special water proof design, IP 65 protect class, it has good performance of water proof, dust proof and vandalism proof, which make it a good choice for public use or harsh environment.

¨          Silicone switching elements, good tactile feedback

¨          integrated high sensitive touchpad as coursir device

¨          Colored phenolic resin trackball available on request

¨          Rack-mount version makes it easy to install

¨          Laser engraved characters for excellent durable

¨          No removable keycaps

¨          Friendly layout and any language is available and it’s free of additional charge

SPECIFICATION:

¨          Number of Keys: 63+3 keys

¨          Material: stainless steel (front panel) and alumina alloy (scaleboard)

¨          Key travel:1.5mm

¨          keyswitch lifespan: more than 10 million of operations.

¨          Keyswitch technology: silicone switching

¨          Key graphics: laser engraved legends & characters in durable paint

¨          Mounting syle: rack mount

¨          G.W.: 1.40KGs

¨          Dimensions: 330mm x 100mm (front panel)

¨          Supply Voltage: +5V DC 5%

¨          Communication interface: USB or PS2 (optional)

¨          Protection Level: IP65(front panel)

¨          Operating temperature:-40°C ~+70°C

¨          Storage temperature: -50°C ～ +80 °C

¨          CE ,FCC,RoHS Compliant

¨          OS support:DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/7, Linux, Mac,etc

¨           MTBF >50000H

¨          MTTR <30min

Specification of Touchpad

¨          Motion Detection Method: capacitive

¨          Resolution: 40 counts / mm

APPLICATION

¨          This Keyboard is mainly use for unattended internet terminals and information kiosks in public areas, self-service terminals in bank, ticket vending machines, gas stations, cash machines (ATMs), Internet public phones, industrial console, etc
