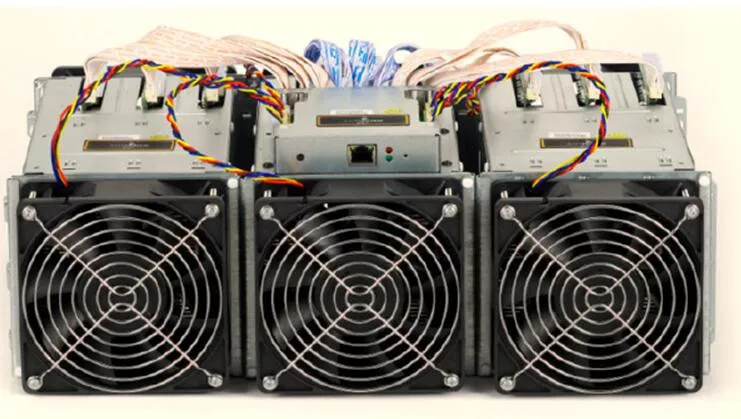

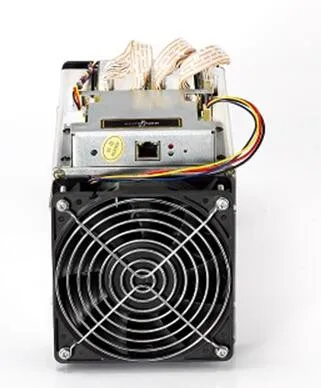

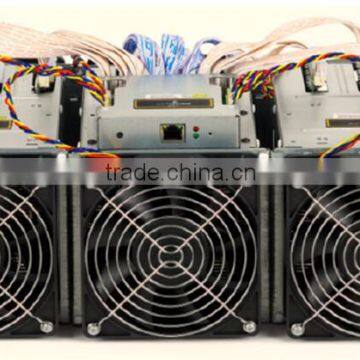

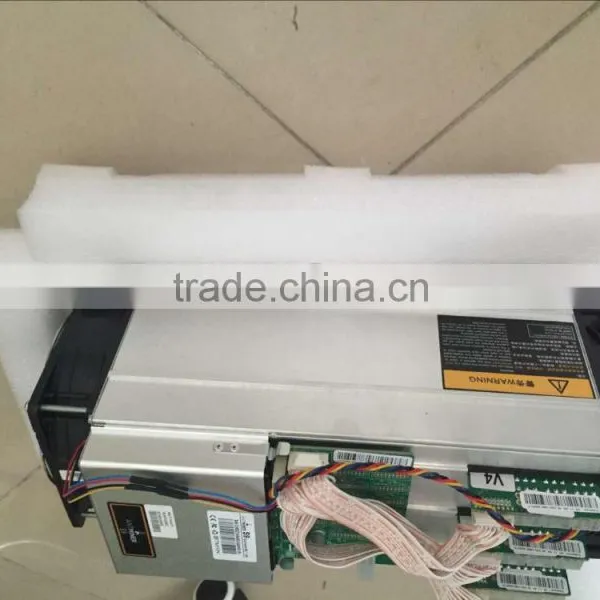

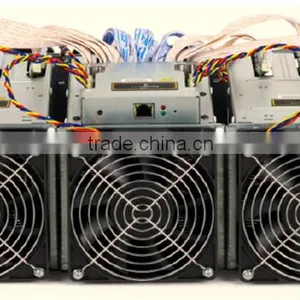

2016 NEWEST Bitcoin Miner S9 Bitmain Antminer S9 SHA-256 BTC Asic Bitcoin Miner 11.85TH/s Antminer S9 BTC

Features:

S9 Specifications:

1. Hash Rate: 11.85TH/s ±5%

2. Power Consumption: 1172W + 7% (at the wall, with APW3 ,93% efficiency, 25C ambient temp)

3. Power Efficiency: 0.1 J/GH + 7%(at the wall, with APW3 93% efficiency, 25°C ambient temp)

4. Rated Voltage: 11.60 ~13.00V

5. Chip quantity per unit: 189x BM1387

6. Dimensions: 350mm(L)*135mm(W)*158mm(H)

7. Cooling: 2x 12038 fan

8. Operating Temperature: 0 °C to 40 °C

9. Network Connection: Ethernet

10. Default Frequency: 650M

Notes:

1. Power consumption figures will vary with your PSU's efficiency, the ambient operating temperature and the accuracy of the power meter.



2. PSU: A power supply unit is not included, and you will need to provide an ATX PSU. There are 3 PCI-e connectors for +12V DC input on each hashing board and all 3 are required. Do not connect more than one PSU to the same hashing board!

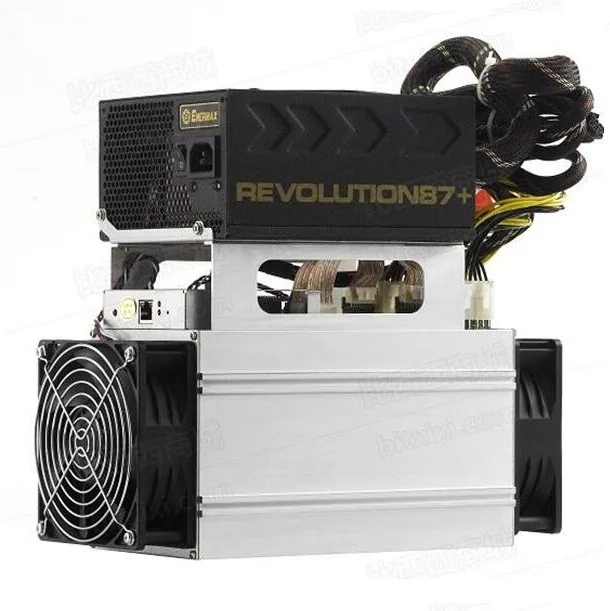

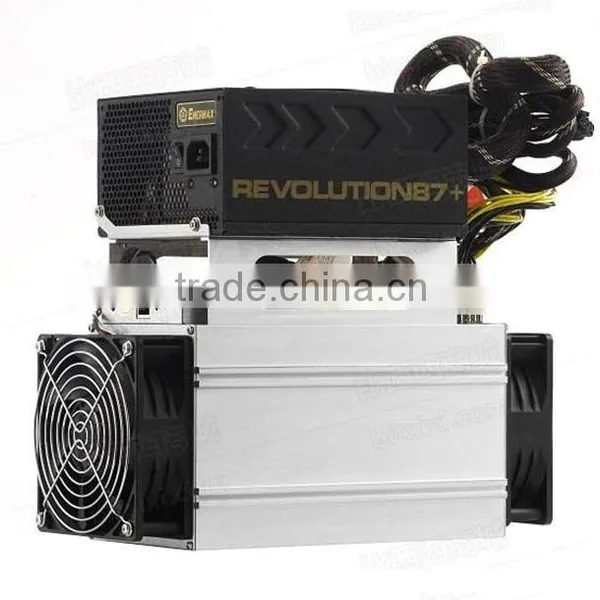

Bitmain recommends theAPW3-12-1600-B2 power supply for use with the S9. One power supply support one S9.



4. Separate power supply to control board: there is one additional 6pin PCI-e connector on the IO board which must be connected to the PSU to get power. Be sure to power on the miner after ALL the 10x PCIE connectors connected to power supply.
