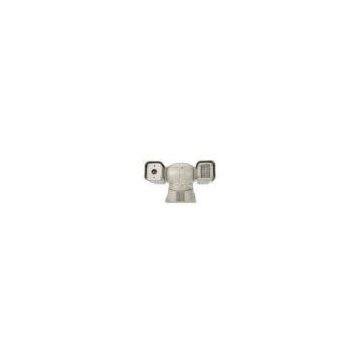

26x, 36x Outdoor IR High Speed CCTV PTZ Camera With OSD Menu, Alarm Function
Description:
Outdoor high speed PTZ camera
IR distance reaches 120-180m
Support OSD menu, RS485 control
128 presets, 4 tours, 8 privacy masks
Programmable multiple protocols
Auto running memory against power outage
Support color and idle time functions
Alarm function: 4ch input,1ch output
Power supply: AC18V-AC30V, 3.5A
Specifications:
Sealed modulized structure design, the grade of water-proof reaches IP66.
● The cover is constructed with Aluminum alloy, which has better effect for heat dispersion.
● Adopt latest LED Array technology, it has higher brightness, longer visible distance: 120-150m at night, more evenly distributed light field and much longer lifespan.
● Driven by a stepper electric motar, the unit runs smoothly, reacts quickly and locates positions accurately.
● Internally-saved data won\'t lose within one year after power off
● Support full day (24 hours) monitoring, at night, the camera automatically switches from color to B&W, and turns on the IR Lamp.
● Powerful OSD Menu: 4 kinds of input methods. All the functions of the Pan/Tilt and the Camera Module can be configured and run through OSD menu.
● Programmable multi-protocol: PELCO_D, PELCO_P, PELCO_D1
● Baud rate: 1200bps, 2400bps, 4800bps, 9600bps
● 128 presets, ±0.1° preset, 4 tours(16 presets/tour)
● Address range of PTZ: 1~255
● Pan rotation range: 360° continuously, Tilt rotation range: 90° auto flip
● Rotation speed: 0～55°/s, 1 Left & Right scan
● Pattern Scan number: 4; Privacy Mask Zone number: 8
● Built-in alarm: 4 input/1 output
● Brush function: manual
● Fog dispersion function: manual
● Clock function: built-in accurate clock, with which multi functions can be timed to be carried out, including timing for the camera to change from color mode to B&W mode, timing to invoke preset position, timing to run tour, timing to run Auto Scan, timing to run pattern scan etc.
● Idle Time functions: The function to be carried out in idle time can be configured, including invoking preset position, Left & Right scan, running tour etc
● Memory recalling function once power off
● Working temperature: -35°C~55°C
● Power supply: AC18V~AC30V, 3.5A
|
Model Number |
Module |
Digital Zoom |
Resolution |
Mini Illumination |
|
TWD-PTZ6088-1803 |
18x Sony Day |
12x |
480TV Lines |
0.7Lux/F1.6 (Typical) 0Lux(IR ON) |
|
TWD-PTZ6088-2603 |
26x Sony day |
12x |
480TV Lines |
1.0Lux/F1.6 (Typical) 0Lux(IR ON) |
|
TWD-PTZ6088-3603 |
36x Sony Day |
12x |
530TV Lines |
1/60 s mode: 1.4Lux/F1.6, 1/4 s mode: 0.1Lux/F1.6 0Lux(IR ON) |
