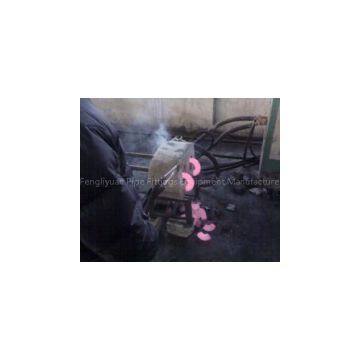

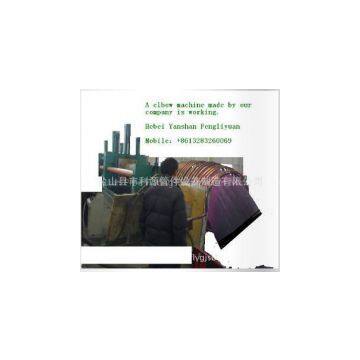

Hydraulic Press for Induction Heating Making Elbows

Hydraulic Press for Induction Heating Making Elbows thumbnail-1
Hydraulic Press for Induction Heating Making Elbows thumbnail-2
Hydraulic Press for Induction Heating Making Elbows thumbnail-3
Hydraulic Press for Induction Heating Making Elbows photo-1
Hydraulic Press for Induction Heating Making Elbows photo-2
Hydraulic Press for Induction Heating Making Elbows photo-3
US$ 30000 - 30000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Fengliyuan
Place of Origin:
China
Model Number:
YWT-219
Contact Supplier Request Quote Chat Now
Hebei Yanshan Fengliyuan Pipe Fittings Equipment Manufacture Co.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Fengliyuan
Place of Origin China
Model Number YWT-219

The Main Technical Parameters of The Machine

1  The oil cylinder:ID 360mm, the rod:Ф260mm ，the effective trip: 6.5m,  pressure：21Mpa,2 bars

The maximum thrust of the 2 cylinders:420 tons;   The working speed: 0—2000px/min ,

The max backward speed: 9500px/min.

2  The pump station：

63scy-plunger pump :2 set, 18.5KW  Motor:  2sets (the main working pump)

   PV2R13-23-116 double vane pump 1 set,15kw motor 1 set.

The hydraulic valve is integrated oil rout, hydraulic back fork gate. Automatic feeding.  an adjustable shelf (height and width) for the heating coils

3.  The frame for the machine body: 30# channel steel, welded  with 43kg steel   rail

4  The panel for the main engine: welded with 40-50mm medium steel sheet.

5  Distribution cabinets, operation box 1 set

6  Intermediate-frequency power (power 600KW  380v、220v、50/60Hz)
