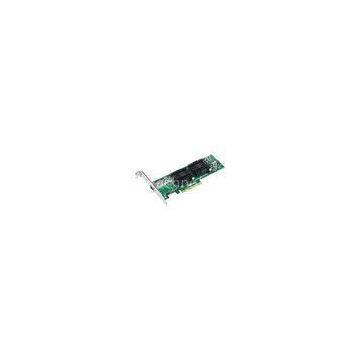

IEEE802.3 Standard LC Fiber Optic Cable Gigabit Network Server Adapter With SFP Slot*2
Intel 82571EB Gigabit Network Server Adapter 10002PF-SM-40KM
Product Description
Femrice PRO/1000 Dual-port Ethernet Gigabit Adapter
Applicate two Gigabit Server Adapter connections in a single PCI Express * slots, you can applicate two high-performance PCI Express * 1000BASE-SX, 1000BASE-LX and 1000BASE-ZX adapter in limited server slot .and with the advanced server features to achieve multi-gigabit scalability and uptime.
Reliable connectivity
Dual Port Gigabit Server Adapter, can added multi-port fiber connectivity to enhance network performance and also saving valuable PCI Express (PCIe *) server slots. In Gigabit Ethernet connection of optical network, PCIe equip the dedicated input / output (I / 0) Bandwidth can guarantee superior performance, and donot take up bus bandwidth. In addition, Femrice dual port Gigabit Server Adapter design, can demonstrate excellent performance among multi-processor system. When used in conjunction withthe receiver extension of Microsoft or Linux * scalable I / O devices, Femrice dual port Gigabit Server Adapter can be balance effectively among the network load of multiple CPU cores, so to improve the performance of multiprocessor systems.
Dual Port Gigabit Server Adapter applicate to Gigabit Ethernet, with excellent noise immunity, and also support long-distance fiber connectivity. All the PRO Network Connection support Femrice PRO intelligent installation, so that simplify installation and management processes, simplify the installation process of the Gigabit Server Adapter, With this program, you can also by simple click, configure and manage all network connections in order to meet your connectivity needs.
Products Technology Paraments Description
|
Products Name |
10002PF-SM-40KM |
|
Products Type |
Gigabit Server Adapter |
|
Chipset |
Intel 82571EB Gigabit Controller |
|
Bus Interface |
PCI-E |
|
Whole Duplex |
Compatible whole duplex and half duplex |
|
Network interface type |
SFP Slot*2(1000BASE-SX, 1000BASE-LX, 1000BASE-ZX), LC fiber |
|
Transmission speed Mbps |
1000 |
|
Transmission medium type |
LC fiber optic cable |
|
Interface |
LC |
|
Cable |
Single mode fiber(62.5m or 50m) |
|
Network standard |
IEEE802.3(1000BASE-SX, 1000BASE-LX, 1000BASE-ZX) |
|
Date Rate/Distance |
1.25G/40km |
|
Fiber Module |
FS-1310-1400 |
|
Long-range awaken function |
support |
|
Compatible operating system |
Microsoft Windows * Server2003 Enterprise Edition, Datacenter Edition (32-bit and 64-bit), Microsoft Windows 2000, Red Hat Linux * 2.4x or later (32-bit and 64-bit), FreeBSD 4.x or later, Nove II Netware * 5.x, 6.x, Sun Solaris * x86, OS8 and later |
|
LED Indicator Lamp |
2 |
|
Rated power consumption |
3.3Watts(3.3V, 1A) |
|
Working Temprerature |
0-55 |
|
Working Humidity |
85% |
|
Stoke Temperature |
-20-65 |
|
Stoke Humidity |
85% |
|
Length |
12.9 centimeters (5.1 inches) |
|
Width |
6.8 centimeters (2.68 inches) |
