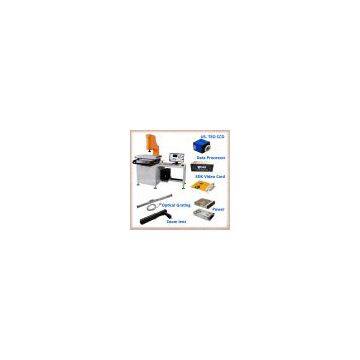

CNC High Precision Vision Measuring Machine VMS-4030E
Function:
1. Double closed-loop motion control, embedded modules developed to control motor with precise positioning performance.
2.Surface light formed by 24 groups independent light source , each group are constant current source driver and 200-step continuous variable.
3. It can measure point, line, circle, arc and oval, rectangular with the multi-point positioning function,combination of measurements, center structure and the intersection of structure, the midpoint of construction, line structure, a round structure.
4. It has various functions of data processing, display, input and output, Measurement data output Word,Excel and AutoCAD directly to conduct statistical analysis,particularly, the work piece straightening function is very useful.
5. Macros will be faster and more convenient to measure the same spare parts, for the improvement of measurement efficiency.
Specifications:
|
Model |
VMS-3020E |
VMS-4030E |
|
|
Table |
The metal table size(mm) |
500*330 |
606*466 |
|
The glass table size (mm) |
350*280 |
450*350 |
|
|
X,Y,Z Measurement Range (mm) |
300*200 |
400*300 |
|
|
Weight(kg) |
260 |
315 |
|
|
Dimensions(L*W*H)mm |
670*660*950 |
720*950*1020 |
|
|
Measuring Targeting System(Standard Accessories) |
Camera: made in U.S. TEO C71 / 2 Color CCD Camera |
||
|
Zoom lens magnification: original U.S. NAVITAR lens, with the company's software to achieve fully automatic continuous zoom |
|||
|
Zoom lens magnification: 0.7 ~ 4.5X Data Resolution: 0.0005mm |
|||
|
Video Total Magnification: 30~190X |
|||
|
Full mouse / joystick is easy to operate |
|||
|
Z-axis travel (mm):150mm The indication error of X,Y-axis ≤(3+L/200)um (L be regarded as measuring the length unit :mm) |
|||
|
Lighting: Surface light and transmission light are used LED,brightness adjustable Power:220V(AC),50Hz 30W |
Guarantee:
12 months warranty. Buy with confidence!
1. Within 12 months from the date of assemble and acceptance, but not exceeding 15 months from the date if shipment.
2. During this period, we will take phone nd nternet teaching to users with a combinative after-sale advisory service.
3. We provide life warranty services of machine for users with cost.
1) If machine failure caused by our side, you can send back the spare parts to us and the cost by our side.
2) But if needs our technician come to customer side for training, technical service is free, except ticket and accommodation.
4. Extra warranty period: We will provide to user lifelong after-sale advisory service.
5. Our company has spare parts which can be provided for the users with cost.
6. We provided users with after-sales value-added technical service by preferential price for life, such as technical upgrades and retrofit.
About us:
We also produce: Measuring Profile Projector Series and CMM Series.......
