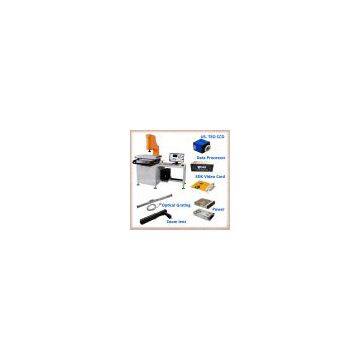

1.5um 3D Image Measurement Equipment
Usage:
l Adopt Germany SB double closed-loop motion control, motor with precise positioning performance in high-speed movement.
l Using Japan COOMUSK servo control motor, not only increasing motor speed, but also simplifies the instrument and the PC-interface, PC machines and instruments through the USB line and S-Video cable to connect.
lWith granite platform ,newest stand column and worktable, look simple and generous.
lSurface light formed by 40 groups independent light source, each group is constant current source driver and 200-step continuous variable.
lWith our company-specific CNC measuring software has greatly enhanced the efficiency measurement.
Specification:
|
Model |
VMU3020 |
VMU4030 |
VMU5030 |
||
|
Worktable |
Work table’s size(mm) |
600*390 |
700*490 |
800*490 |
|
|
Glass table’s size(mm) |
350*250 |
450*350 |
550*350 |
||
|
X,Y Travle(mm) |
300*200 |
400*300 |
500*300 |
||
|
Z-axis travel lift(mm) |
200(Focus) |
200(Focus) |
200(Focus) |
||
|
X.Y.Z-axis digital display resolution |
0.5um |
0.5um |
0.5um |
||
|
X.Y coordinates indicating value error |
≤(1.5+L/200) |
||||
|
Instrument Weight (kg) |
330 |
450 |
500 |
||
|
Dimension (mm) |
620*840*1020 |
720*1040*1020 |
800*1040*1020 |
||
|
Motor |
Three-axis velocity |
200mm/s |
|||
|
Three-axis positioning accuracy |
0.001mm |
||||
|
Imaging System |
Camera |
U.S. TEO Color 1 / 2 "CCD Camera |
|||
|
Zoom lens |
U.S. NAVITAR coaxial optical zoom lens with a zoom lens (2 select one) |
||||
|
Zoom lens magnification |
0.7-4.5X |
||||
|
Video Total magnification |
20-128X |
||||
|
Object field |
11.1-1.7mm |
||||
|
Power |
AC220V/AC110V |
||||
|
Power consumption |
100W |
||||
|
Instrument Accessories |
1X Tube (standard) |
0.5X Tube (optional) |
WD |
||
|
Zoom lens |
0.7-4.5X |
0.7-4.5X |
|
||
|
Add Mirror |
video magnification |
object field |
video magnification |
object field |
|
|
0.5X(option) |
10X-64X |
22-3.4 |
5X-32X |
44-6.8 |
175 |
|
1.0X(standard) |
20X-128X |
11.1-1.7X |
10X-64X |
22-3.4 |
92 |
|
2.0X(option) |
40X-256X |
5.5-0.9 |
20X-128X |
11.1-1.7 |
36 |
Guarantee:
12 months warranty. Buy with confidence!
1. Within 12 months from the date of assemble and acceptance, but not exceeding 15 months from the date if shipment.
2. During this period, we will take phone and internet teaching to users with a combinative after-sale advisory service.
3. We provide life warranty services of machine for users with cost.
1) If machine failure caused by our side, you can send back the spare parts to us and the cost by our side.
2) But if needs our technician come to customer side for training, technical service is free, except ticket and accommodation.
4. Extra warranty period: We will provide to user after-sale lifelong advisory service.
5. Our company has spare parts which can be provided for the users with cost.
6. We provided users with after-sales value-added technical service by preferential price for life, such as technical upgrades and retrofit
Our Pics:
We have: profile projector series,CMM series etc.
Welcome to visit our factory!!
