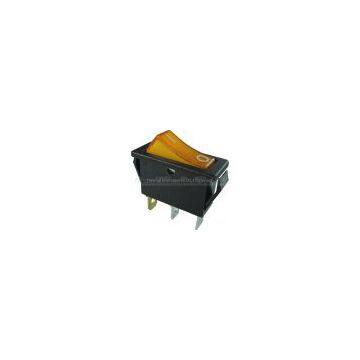

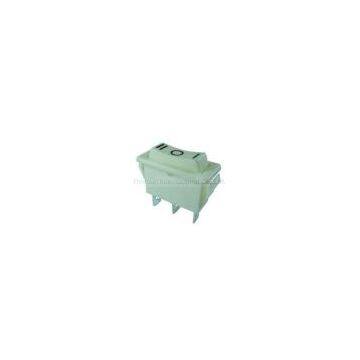

Electric Rocker Switch for Water Drinking Appliance

Electric Rocker Switch Specifications

1,Rated voltage and current:UL:20A 3/4HP 125VAC　

                                      16A  1HP  250VAC

                              VDE(ENEC):10/15/16A 250VAC

                              CQC: 16A 250VAC

2,Mechanical Life:30000times

3,Service Life:10000times

4,Resistance:<20mΩ

5,Insulation resistance:>1000MΩ

6,Withstand voltage:>1500V/minutes,

7,Ambient temperature:-10℃~+85℃

8,Storage Temperature:-10℃~+85℃

9,Ambient Humidity:Max.85 %

10,Operation Force:3~8N【Depending on different function】

11,Fire rating:UL94 V-2

12,Shell Material:PA66

13,Button Material:PA66 / PC

14,Contact Material: Silver Alloy

15,Terminal Material:Brass(Silver plated)

16,Terminal Temperature goes up:Max 30℃,【UL1054]

17,Terminal Solderability:Temperature no higher than350℃,less than 3seconds.

Note:

When welding, do not press terminal

18,Function

Single stage single throw:ON-OFF,(ON)-OFF,ON-(OFF),with light ON-OFF

Single stage double throw:ON-ON,ON-OFF-ON,ON-(ON),(ON)-OFF-(ON),ON-OFF-(ON)

19,Shell/ button color: All colors available.
