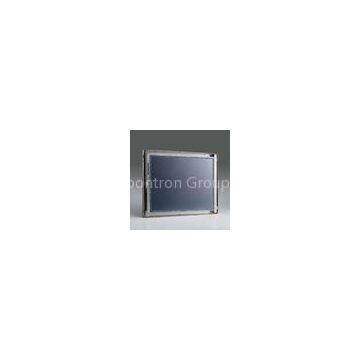

Touch Screen 12.1" SVGA TFT Open Frame LCD Panel Monitor With Audio Input, Internal USB

Shenzhen Pontron Group Ltd
Touch Screen 12.1
Touch Screen 12.1
Negotiable MOQ: 1 Kilogram (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
PONTRON
Place of Origin:
China
Model Number:
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name PONTRON
Place of Origin China
Delivery Time:within 3 days
Certification:CE/FCC/CCC

Touch Screen 12.1\" SVGA TFT Open Frame LCD Panel Monitor With Audio Input, Internal USB



Features

12.1\" SVGA TFT LCD Panel support 800x600 pixels Open frame structure with strengthen glass Rugged construction design Input signal : VGA + Audio 400 cd/m2 brightness OSD control keys to optimize the display Build in 2x 2 Watts stereo speaker AC 100-240V wide range external ac adapter Panel mounting with clip Meet standard VESA hole ( 75x75 and 100x100 mm ), support desk top stand / wall mount / swing arm mounting

Optional

Video input (Composite ) DC power input ( 8 -30V dc input ) Touch Screen

Specification

LCD Panel

Display Type: 12.1\" SVGA TFT LCD
Screen resolution (Pixels): 800*600
Brightness: 400 nits
Contrast Ratio: 500: 1
Pixel Size: 0.3075*0.3075
Maximun Color: 262K
Viewing angle (L/R,U/D): 65/65,50/60
Response Time: 25 ms
Power Consumption: 6.8Watts
MTBF: 50,000 hrs.

Signal input

VGA ( 15 pin D-sub connector ) + Audio input ( audio jack )

Protect glass

3 mm strengthen glass

OSD

Brightness, Contrast, H/V Position, Color, Phase, Clock, auto tune and recall

Touch Screen ( optional )

Internal USB or RS-232 interface controller
Type: Analog resistive type : 25VDC ≥ 20MΩ
Resolution: continuous
Light transmission: 80% or more
Power consumption:<5V @1mA
Surface hardness : 3H
Operating force : ≤100g
Life expectancy : 35 Million
Operation system : Window 98 / 2000 / ME / XP / NT / CE, DOS , Linux

Signal connectivity ( optional )

AV input (RCA)

DC power input ( optional )

Wide range DC 8V-30V input

Power Supply

Input: 100~240VAC,50/60Hz
Output: DC12V@ 4A /48W ,external ac adapter

Construction

Heavy duty steel

Environment

Operating temperature: 32 °F~113 °F (0 °C to 45 °C)
Storage temperature: -4 °F~140 °F (-20 °C to 60 °C)
Storage humidity: 10% to 95%@ 40°C , on-condensing
Vibration: 10 ~ 150Hz, 0.15mm 10 cycles 1G
Shock: 30G peak acceleration (11 msec. duration)

Safety

CE/FCC/Rohs

Dimension W x H x D ( mm )

Dimensions:350.1x264.1x50mm
Packing Dimension:460x170x 420mm

Weight ( kgs )

NET weight: 4.9KG
Gross weight: 5.7KG
