Certification:CE、ROHS、 FCC,UL ,SGS
5 IR Leds Indoor and Outdoor IR 630tvl color CCD Waterproof inrfared Cameras
CCD Cameras HP-630IR-M1/3\" Sony SUPER HAD II CCD
630tvl color/700tvl B/W
IP66 Certified Waterproof
3-Axis Concealed Bracket

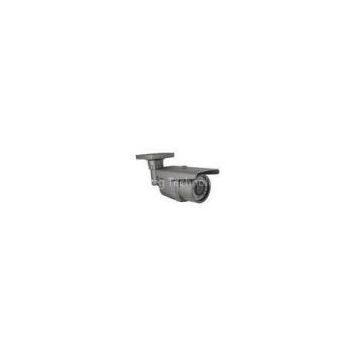

HP-630IR-M Indoor and Outdoor IR Waterproof CCD Cameras
FEATURES:
(1) 1/3\" Sony SUPER HAD II CCD,630TVL COLOR/700TVLB/W
(2) 42pcs φ5 IR Leds, IR Distance 30M.
(3) Built-in 4-9mm (9-22mm,6-15mm, 2.8-12mm Optional) Manual iris Lens.
(4) D-WDR (Digital Wide Dynamic Range),2D DNR (Digital Noise Reduction)
(5) DSS(Digital Slow Shutter ) Sens-UP(X256), HLM(High Light Mask)
(6) 0.0003Lux(Sens-up at F1.2); 0 Lux(IR Led are on)
(7) IP66 Certified Waterproof / 3-Axis Concealed Bracket
(8) Second Video Test, LSC, Smart IR.
TECHNICAL PARAMETER:
|
Model |
HP-630IR-M |
|
Imaging Sensor |
1 / 3\" SUPER HAD || CCD |
|
Pixel |
PAL:795(H) x 596(V);NTSC:811(H) x 508(V) |
|
Signal System |
PAL/ NTSC |
|
Syn. System |
Internal Synchronization |
|
Shutter speed |
PAL:1/50~1/100000s;NTSC:1/60~1/100000s |
|
S/N Ratio |
More than 50dB(AGC OFF) |
|
Video Output |
1.0Vp-p, 75 ohms BNC |
|
Horizontal resolution |
Color 630TVL, B/W 700TVL |
|
Minimum Illumination |
Color 0.1Lux(F1.2,50IRE,AGC ON),B/W:0.001Lux(F1.2,50IRE,AGC ON) |
|
D/N Switch |
Auto/Color/B/W/External Control |
|
Brightness Switch |
Color to B/W & B/W to Color for option |
|
D/N Switching Time |
0s~10s |
|
Title setting |
16 characters |
|
Title Position |
Any position on the Screen |
|
Image Brightness |
0~99 adjustable |
|
AGC |
Off/12db/24db/36db |
|
OSD |
English/Chinese |
|
Led Light Wave |
650nm/850nm |
|
Strong Light Reversion |
4 zones |
|
Backlight Compensation |
0~3 adjustable |
|
PRIVACY |
1~8 Zones |
|
WDR |
Digital WDR |
|
Motion Detection |
On / Off (multi-sensitivity settings, alarm time optional) |
|
Alarm Display |
track / Icon optional |
|
AWB |
Manual/Auto/Auto tracking/Lock |
|
Sharpness |
0~49 adjustable |
|
GAMMA |
0.3~1.0 adjustable |
|
DPC |
MDPC/ADPC |
