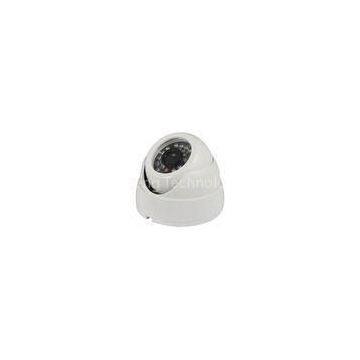

630TVL Vandal-proof Closed Circuit Speed Dome Waterproof IR Infrared Camera

Model

                     HP-630VB-IR

Imaging Sensor

1 / 3\" SUPER HAD || CCD

Pixel

PAL:795(H) x 596(V);NTSC:811(H) x 508(V)

Signal System

PAL/ NTSC

Syn. System

Internal Synchronization

Shutter speed

PAL:1/50~1/100000s;NTSC:1/60~1/100000s

S/N Ratio

More than 50dB(AGC OFF)

Video Output

1.0Vp-p, 75 ohms BNC

Horizontal resolution

Color 630TVL, B/W 700TVL

Minimum Illumination

Color 0.1Lux(F1.2,50IRE,AGC ON),B/W:0.001Lux(F1.2,50IRE,AGC ON)

D/N Switch

Auto/Color/B/W/External Control

Brightness Switch

Color to B/W & B/W to Color for option

D/N Switching Time

0s~10s

Title setting

16 characters

Title Position

Any position on the Screen

Image Brightness

0~99 adjustable

AGC

Off/12db/24db/36db

OSD

English/Chinese

Led Light Wave

650nm/850nm

Strong Light Reversion

4 zones

Backlight Compensation

0~3 adjustable

PRIVACY

1~8 Zones

WDR

Digital WDR

Motion Detection

On / Off (multi-sensitivity settings, alarm time optional)

Alarm Display

track / Icon optional

AWB

Manual/Auto/Auto tracking/Lock

Sharpness

0~49 adjustable

GAMMA

0.3~1.0 adjustable

DPC

MDPC/ADPC

3D DNR

0~5 adjustable

Sense-Up
