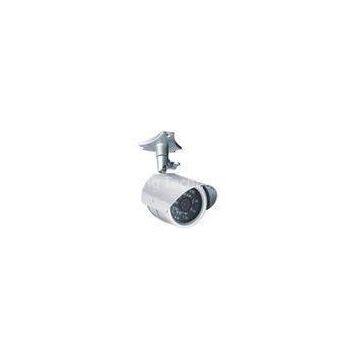

HP-600IR-S Waterproof Security Infrared Camera, CCTV Camera With Manual Iris Lens

Function

Imaging Sensor

1 / 3\" SUPER HAD || Hi-sensitive CCD

Pixel

PAL: 752(H)×582(V);

NTSC: 768(H)×494(V)

Signal System

PAL/ NTSC

Syn. System

Internal Synchronization

Shutter speed

PAL:1/50~1/100000s; NTSC:1/60~1/100000s

S/N Ratio

More than 50dB(AGC OFF)

Video Output

1.0Vp-p, 75 ohms

Horizontal resolution

Color 600TVL, B/W 650TVL

D/N Switch

Auto/Color/B/W/External Control

Brightness Switch

Color to B/W & B/W to Color for option

D/N Switching Time

1s~30s Optional

Title setting

54 characters

Title Position

Any position on the Screen

Image Brightness

0~255 adjustable

AGC

Low/Milddle/High choice

OSD Control

English/Chinese OSD

Strong Light Reversion

On/off, 0~255 adjustable

Backlight Compensation

On/Off,Two Area Setting

IR Smart

ON/OFF

IR LEVEL

LOW/MIDDLE/HIGH

DPC

Support

Privacy Zone

1~8 Zones for setting privacy areas

Privacy Zone Color

Black/Grey/Color. 1-16 Colors optional

Parking line

Support

Wide dynamic compensation

0-63 adjustable

Motion Detection

On / Off (multi-sensitivity settings, alarm time optional)

Alarm Display

track / Icon optional

AWB

ATW1/ATW2/AWC / MANUAL

Mirror

On/Off
