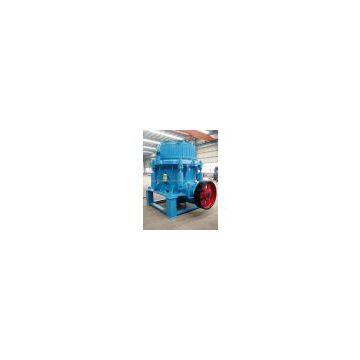

Help CenterSymons Cone Crusher Exported to More Than 20 Countries
Related Products
-
Copper, Zinc, Nickel , LeadFlotation MachineUS$ 1000 - 1000MOQ: 1 Set -
New Generation 100-200 t per Hour Industry Stone Production LineUS$ 100000 - 100000MOQ: 1 Set
-
High Efficiency Double Roller Crusher Used in QuarryUS$ 2000 - 100000MOQ: 1 Set
-
Hot Sale Symons Cone CrusherUS$ 10000 - 10000MOQ: 1 Set
-
Energy-saving Stone Crushing MachineUS$ 30000 - 30000MOQ: 1 Set
CS Series spring cone crusher is a kind of secure crusher , currently the most widely used in the world ,with the characteristics of high quality ,fine products ,even size,long service life ,and high efficiency. And it has found its extensive application in the field of non-metal mining, building materials ,sandstone mining and cement ,etc.
Structure Features of symons cone crusher :
1. Multi-crushing chamber:CS Series spring cone crusher has a special design with three types of chambers; as to the different situation ,users can choose the crushing chamber which can ensure high efficiency,evenly size ,long service life ,and the evenly abrasion of the mantle.
2. Dry oil seals dust :Unique structure to seal dust ,the reliable sealing extended the lubricants’ replacement cycle and the service life of the spare parts .
3. High crusher power:The key components made of the special materials speed up the crushing cavity’s working process.
4. High production: Long crush arms and the long compact distance reduce the load of the sliding bearings ,gears and rack.
5. Low operation cost : Hydraulic-cavity system ,which is easy to operate ,reduces the off- time , with the low consumption and reasonable arrangement.
Working Principle of symons cone crusher :
1. Driven by the electric-motor ,the eccentric shaft bush will rotate with the triangle belt,small and big bevel gear,big bear,transmission shaft.
2. Driven by the eccentric shaft bush ,the cone crusher axis will move circlely ,which makes the mantle close or leave the cone from time to time .And then the materials will be crushed by continuously compacting, striking,and bending in the circle crushing cavity between the fixed and movable cone.
3. After several time’s repeating ,the materials will be crushed to the required size and then they will be discharged by the discharging opening.
