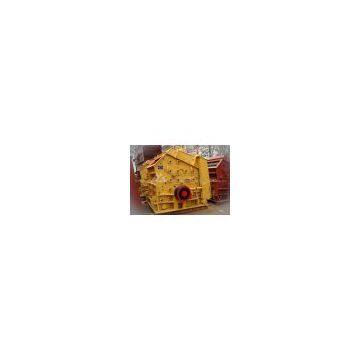

Help CenterEnergy-saving Stone Crushing Machine
Related Products
-
Large Capacity Protable Crusher,mobile CrusherUS$ 100000 - 100000MOQ: 1 Set -
Low Electronic Consumption Vibrating Screen,Sand Vibrating ScreenUS$ 10000 - 10000MOQ: 1 Set
-
ISO9001:2008 Approved Fine Crusher With High CapacityUS$ 3000 - 3000MOQ: 1 Set
-
New Design Roller Crusher,double Roller CrusherUS$ 10000 - 10000MOQ: 1 Set
-
Lifetime and High Capacity Hammer Crusher(hot Selling)US$ 5000 - 5000MOQ: 1 Set
1. General introduction of stone crushing machine
Impact crusher can crusher many kinds of materials with max feed size less than 500mm and crushing strength less than 350MPa.It has the features of high ratio of crushing,reliable working,easy maintenance,etc.The final products are with cubic shapes and are ideal equipments for the highway,water and electricity construction.In addition,impact crushers are more suitable to process tranite,limestone,river gravel etc.in the area of highway construction,water cnservancy project and architecture. XBM highway construction stone crushing machine / impact crusher
2. Application of stone crushing machine
PCX stone crusher plant is widely used in granite, basalt, limestone, river gravel, cement clinker, quartz stone, iron ore, bauxite and other minerals, fine crusher. The mechanism is also used for artificial sand, high-grade highways, railways, water conservancy, airport, construction, cement, refractory, metallurgical and other industries, producing high-quality stone. XBM highway construction stone crushing machine / impact crusher
3. Working process of stone crushing machine
This impact crusher machine crushes materials with impact force. When the materials enter the blow bar area, they are crushed due to the high-speed impact of the blow bar and are thrown to the impact plates on the rotor for secondary crush. Then the materials will be shot back to the blow bar again for the third crush. This process repeats until the materials are crushed to the required size and discharged from the lower part of the machine. The size and shape of the finished powder can be changed by adjusting the gap between the impact rack and rotor support. The machine employs self-weigh security device in its back frame. When other objects enter the impact cavity, they will be forced out of the machine by the impact rack in the front and back of the machine. XBM highway construction stone crushing machine / impact crusher
4.Features of stone crushing machine
1). The combination of multi crushing chambers can make the product in uniform particle sizes, which are suitable for crushing hard rocks. XBM highway construction stone crushing machine / impact crusher
2). The bottom impact plate structure makes the crushed products smaller in cubic shape with no internal cracks.
3). These series have big feed opening which is more easily for disposing production lines.
4). New type of high alloy abrasion materials makes the service life of blow bars, impact plates, and liner plates much longer
5. Advantages of stone crushing machine
1). Excellent cubic final products
2). Special structure, XBM highway construction stone crushing machine / impact crusher
3). Non-key connection
4). High chrome hammer
5). Durability in long time simplicity in operation
6). Easy adjustment, high reduction ration
7). Good performance and high reliability
6. For the purchase of the most suitable impact crusher, please take the following points seriously
1). Maximum size of the feed stone?
2). Maximum size of the discharge stone?
3). Capacity (tons per hour)?
4). Do you just need the crusher, or crushers with feeder, vibrating screens, conveyors and some others?
