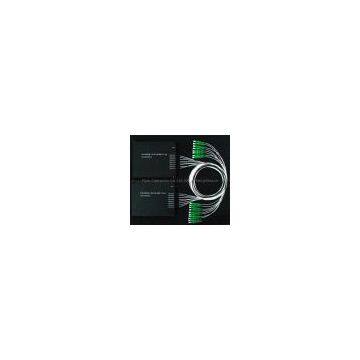

100g/200g DWDM, OADM Module, DWDM Device

Name: 100g/200g DWDM, OADM Module, DWDM Device
Brand: Flyin
SKU: 147729046
Availability: InStock

Flyin Optronics Co.,Ltd (Shenzhen)

US$ 1 - 1 MOQ: 1 Kilogram

Key Specifications

Brand Name:

Flyin

Place of Origin:

China

Model Number:

FY-DWDM

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

Brand Name Flyin

Place of Origin China

Model Number FY-DWDM

100g, 200g DWDM, OADM Module, Cheap DWDM, DWDM device

Features

1. ITU channel spacing

2. Low insertion loss

3. Wide pass band

4. High channel isolation

5. High stability and reliability

6. Epoxy free on optical path

Applications

1. Channel Add/Drop

2. DWDM Network

3. Wavelength Routing

4. Fiber Optical Amplifier

5. CATV fiberoptic System

Parameter	4 Channel	8 Channel
Add	Drop	Add	Drop
Channel Wavelength (nm)	ITUGrid
Center Wavelength Accuracy (nm)	0.05(100G)/0.1(200G)
Channel Spacing (GHz)	100
Channel Passband (@-0.5dB bandwidth) (nm)	> 0.22(100G) / > 0.5(200G)
Insertion Loss (dB)	In---Drop@drop	2.0	3.2
Add---Out@add	2.0	3.2
In---out@other	2.5	5.0
Add/Drop Channel Ripple (dB)	< 0.3
Isolation @Add/Drop Channel (dB)	Adjacent	N/A	> 30	N/A	> 30
Non-adjacent	N/A	> 40	N/A	> 40
Insertion Loss Temperature Sensitivity (dB/)	< 0.005
Wavelength Temperature Shifting (nm/)	< 0.002
Polarization Dependent Loss (dB)	< 0.1
Polarization Mode Dispersion (ps)	< 0.1
Directivity(dB)(Inputtoadd, Outputtodrop, addtodrop)	> 50
Return Loss (dB)	> 45
Maximum Power Handling (mW)	500
Operating Temperature ()	-10~+75
Storage Temperature ()	-40~+85
Package Dimension (mm)	L100xW80xH10

Ordering information

OADM
	Channel Spacing	Numbe rof Channels	Configuration	1s tChannel	Fibe rType	Fibe rLength	Connector
1=100G Grid 2=200G Grid	4=4CH 8=8CH	44=4x4Add andDrop 88=8x8Add andDrop	21=CH21 … … 34=CH34 … … 50=CH50 … …	1=BareFiber 2=900um loosetube 3=2mmCable 4=3mmCable	1=1m 2=2m	0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=ST 6=LC
