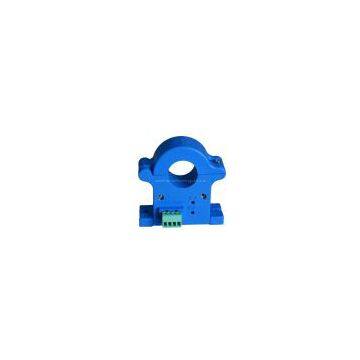

WM SERIES
HALL EFFECT ELECTRICAL CURRENT TRANSDUCERS
AVAILABLE IN SPLIT CORE!
THE WINDOW IS AVAILABLE IN Ø9mm; Ø20mm; Ø25mm
o FOR SMALLER MEASUREMENT CURRENT (200 A below)
Close loop design
Good overall accuracy
Low temperature drifting
o FOR BIGGER MEASUREMENT CURRENT (200A…400A)
Open loop design
Reduced weight
Extended measuring range
Low power consumption
Technical datasheets:
Input
AC, DC, AC/DC current range: 20A…400A
Also available for bidirectional DC current input;
Allowed overload:20 times of nominal input, for 5 seconds;
Offset voltage:≤±25mA( (input current=0, environmental temperature +25°C)
Linearity: 0-120%; or 0-150% for JA type
Output
Tracking voltage: 0-3.5V; 0-5V;
DC voltage: 0-5V;
DC current: 0-20mA; 4-20mA;
For bidirectional:
2.5V ±2.V;
12mA ± 8mA;
Load Capability: 5mA; 6V;
Response time:300ms; (for tracking voltage output: 3μs)
Temperature Drift: 300ppm to 500ppm
Overall accuracy: 1%
Power supply: available in
DC ±12V; ±15V;
DC 12V; DC 24V
Insulation: input to output isolated;
Isolation voltage: DC 6000V;
Case protection: IP 20
Installation: DIN rail 35; or M3 Screw
