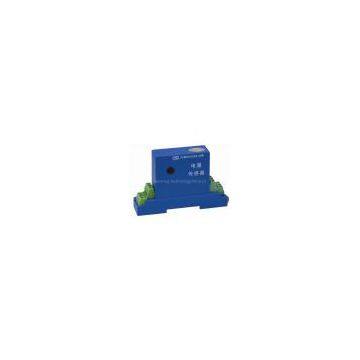

WM SERIES AC Power transducers
SINGLE PHASE/3-PHASE 3-WIRE/3-PHASE 4-WIRE
DIN RAIL/PANAEL MOUNT/ACTIVE/REACTIVE
DESCRIPTION
WM series AC power transducers and transmitters are designed to provide a controlled output that is proportional to the average power. These devices provide an efficient solution to most power sensing needs. Units are designed for operational systems with sinusoidal voltage and current waveforms and featured with high accuracy, low wiring costs, easier installation and low power consumption and low cost.
APPLICATIONS (For General Applications)
Energy Management
Motor efficiency
Multi-point power sensing
WM series AC power transducers have meet requirement of IEC 61010-1Technical specification for single phase AC power transducer
Input Measuring Range:
AC voltage: 10V, 110V, 220V, 380V, 500V
AC current: 5A, 10A, 20A, 30A, 50A
Allowed Overload:
For voltage: 2 times of nominal input value, for 1 second;
For current: 20 times of nominal input value, for 1 second;
Working frequency: 50 Hz
Frequency Range: 25Hz –5KHz
Linearity Range:
Current:1%-120%
Voltage:20%-120%
Cos Ø: 0.1-1-0.1
Input Impedance: Ux*1kΩ (Ux means measurement voltage)
Aperture: Ø9mm
Output characteristics
DC voltage or current output (unidirectional also available)
DC voltage: 2.5V±2.5V; 0-5V
DC current:0-20mA; 4-20mA
Response time: 300ms
Static Current: please see datasheets for each model
Load Capacity: 5mA
Output ripple:≤10mV
Temperature drift: 250ppm
Isolation
Input to output isolated, or
Input to output to power supply isolated
Insulation Voltage :> 2500Vdc, one minute;
Accuracy: 0.5%
CMRR: 60dB (50Hz)
Power Supply available:
DC+12V; or +24V
Environmental temperature: 0~50℃
Storage temperature:-25 ℃ ~70℃
MTBF :> 50000 hours;
Installation: DIN rail mount or M3 Screw
Case protection: IP 20; conform with UL94V-0
Technical specification for 3- phase AC power transducer
Input:
Phase voltage: AC 57.7V-289V;
Line voltage: AC 100V-500V;
Current: AC 1A-10A
Allowed Overload:
For voltage: 2 times of nominal input value, for 1 second;
For current: 20 times of nominal input value, for 1 second;
Working frequency: 50 Hz
Linearity:
Current:1%-120%
Voltage:20%-120%
Cos Ø: 0.1-1-0.1
Input Impedance: Ux*1kΩ (Ux means measurement voltage)
Output:
Two channel-Analogue output:
DC voltage or current output (unidirectional also available)
DC voltage: 2.5V±2.5V; 0-5V
DC current: 0-20mA; 4-20mA
One channel-Digital output: RS485. Protocol agreement: Modbus -RTU
Output parameters:
E,R,P,Q,C,S, Ua,Ub,Uc,Uab,Ubc,Uac,Ia,Ib,Ic,Pa,Pb,Pc,Qa,Qb,Qc,Ca,Cb,Cc,Sa,Sb,Sc
Response time: 200ms
Static Current: 65mA
Load Capacity: 5mA
Output ripple: ≤10mV
Temperature drift: 100ppm
Isolation:
EMC circuitry design
Input to output to power supply isolated
Insulation Voltage :>2500Vdc, one minute;
Accuracy: 0.5%
Power Supply available: DC+12V; or +24V
Environmental temperature: 0~50℃
Storage temperature:-25 ℃ ~70℃
MTBF :> 50000 hours;
Installation: DIN rail mount or M3 Screw
Case protection: IP 20; conform with UL94V-0
