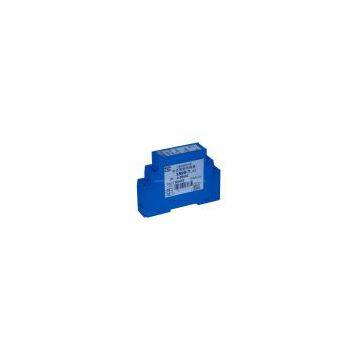

WM 400 SERIES AC Current Measurement
DESCRIPTION (AVERAGE RMS responding)
WM400 Series current /voltage transducers combine a current transformer and signal conditioner into a single package. This provides high accuracy, low wiring costs, easier installation and low power consumption and low cost.
APPLICATIONS (For General Applications)
Building Automation, Energy Management
Monitor motor faults
Monitor lighting elements
Monitor heating elements
WM 400 series AC current transducers have meet requirement of IEC 61010-1
TECHNICAL DATASHEETS
|
Input Signal (AC CURRENT) |
Ranges available up to and including 600AAC |
|
Allowed overload |
20 times of input current value, continues for 1 second; stop 300 second, then repeat 5 times. |
|
Linear range |
0%-120%; for 10V output 0%-100% |
|
Frequency range |
25HZ—5KHZ |
|
Aperture available |
S type: Ø4mm. Ø9mm F type: Ø20mm; Ø35mm; Ø48mm |
|
Input impedance |
About zero |
|
Output signal |
Tracking voltage; DC voltage, DC current RMS sensing output |
|
Output specifications |
AC 0-3.5V; AC 0-5V; DC 0-5V;DC 0-10V; DC 0-20Ma; DC 4-20Ma; |
|
Accuracy |
For tracking output: 0.1% Other 0.5% |
|
Load capacity |
For voltage output:5mA For current output: 6V |
|
Response Time |
For tracking voltage output: 15μs Other 300ms |
|
Thermal drift |
150ppm to 300ppm ( depending on output value) |
|
Other characteristics |
|
|
Power supply |
Available in For tracking output: DC±12V;DC±15V Other output:DC12V;DC24V AC/DC 85V-265V |
|
Static current |
5mA to 19mA (depend on the output) |
|
Working temperature |
0~50℃ |
|
Storage temperature |
-25 ℃ ~70℃ |
|
Isolation |
Total galvanic isolation between power supply circuit designs. (1)input to output isolated; (2)input to output to power supply isolated; |
|
Isolation voltage |
2500VDC-3500VDC |
|
Case protection |
IP 20 |
|
Mean Time Between Failure |
50000 hours |
|
Case material |
According to UL94V-0; Fire Retarded |
|
Installation |
Rail mounting According European standard EN50022. or M3 screw |
|
Dimensions Length*width*height |
for F case style: 137mm*24mm*84mm for S case style:105mm*24mm*66 |
