Help CenterPTFE Skived Sheet Tape &film
Related Products
Specifications
100%Vingin Ptfe FilmsHigh insulation
Rohs ,ISO 9001, SGS certificated
OEM available
Virgin PTFE Films , PTFE membrane, ptfe porous membrane ,ptfe porous film, Virgin pure white ptfe plastic film .
1.Factory direct
2.Color:White
3.ISO,ROHS,SGS approved
4.plastic film
5.High insulation
6.OEM available
7.material :100% virgin PTFE

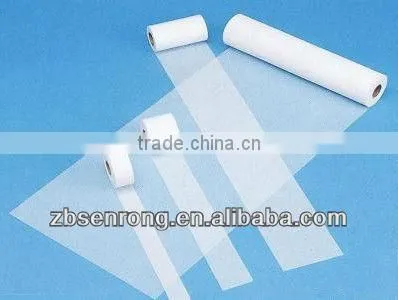

Virgin PTFE film
1). Features of skived PTFE films:
i. anti-corrosion in all kinds of chemicals including nitric acid & aqua fortis;
ii. good dielectric in mediums;
iii. non-aging;
iv. can be used in wide strength range, etc.
2). Use of skived PTFE films:
i. seal liner and lubricant material in kinds of medium, especially corrosive situation;
ii. dielectric material in kinds of frequency;
iii. medium materials of capacities;
iv. insulation material in electrics systems, etc.
1.Features:
PTFE resin is first moulded into billet and then skived . The PTFE resin skived sheet &tape are highly dielectric. Chemical resistantand not aging . They have a wide range of operation temperature.
2.Usage:
Lining ,sealing and oillesslubricating material and dielectric at any frequencies . Capacitor dielectric , wire isolation , electrical instrument isolation.
PTFE plates &belts:
It’s widely used in:
- Adhesive
- welding
- Dielectric
- Anti-corrosion lining
- Surface protect material
3.PTFE FilmSpecifications:
Item |
Thickness |
Thickness allowance |
Width |
Width allowance |
Length (m) |
High –density |
0.030-0.100 |
±10% |
30-90 |
±0.3 |
>10 |
Semi-density |
0.050-0.100 |
±10% |
60-90 |
±0.3 |
>5 |
Common |
0.050-0.500 |
±10% |
60-90 |
±2.0 |
>5 |
Main properties:
Property |
Uint |
High-desity |
Semi-density |
Common |
Tensile strength |
Mpa |
above 30 |
above 20 |
above 10 |
Elongation at rupture |
% |
above 30 |
above 60 |
above 100 |
1MHZdielectric loss |
|
2.5x104 |
- |
- |
1MHZdielectric constant |
|
1.8~2.2 |
- |
- |
|
Dc breakdown voltage (normal tempterture) |
Kv/mm |
200 |
60 |
30 |
Applications:
Teflon film is often used in wear strips and slideways within all types of engineering to take advantage of a stunning co-efficient of friction to guide high performance components a highly wear resistant and super sliding advantage to help reduce costs and improve component life.
OUR PRODUCTS INCLUDE:
1. ptfe sheet: ptfe skived sheet & ptfe moulded sheet
2. ptfe rod: ptfe extruded rod&ptfe moulded rod
3. ptfe tube :ptfe extrued tube &ptfe moulded tube
4. ptfe film Skived films and tapes
5. ptfe thread seal tape
6. ptfe filled products filled with carbon , graphite , glassfiber , Mos2.
7. ptfe shaped components
We supply as customer's special request
