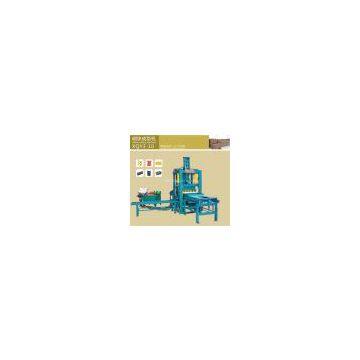

Brick Molding Machine
- 10 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
Product Details
Brand Name: | XIEXING | Place of Origin: | China | Model Number: | XQY3-10 |
Product Description
[Model]: Model XQY3-10
Technology Description
1, Simple structure;small occupying area;stable and reliable function and convenient maintaining;Simple manual operation enables the workers to learn fast;This machine combines many functions into one with low consumption.
2, It is adopting with multi-valves in series,electricity discharging unit and compressing and vibrating organic combing unit to materialize the highest molding and density of the finished products.
3, Auto pallets conveying,pallets feeding and compulsive materials arranging have highly raised up the production efficiency and reduced the working intensity,while simple pallet conveying and feeding units can be installed for production.
4. This machine is combining multi functions into one with material feeding in twice times;Standard block,hollow block,road surface block(including colored block),small pathway block can be all materialized by this machine,which is wildly used
Technology Parameter
Main Machine Overall size(L×W×H mm): 3500×1000×2480
Pallet Size ( L×W×H mm):680×535×20
Molding Periodicity (differs from the different products):15-30 seconds
Machine Power:16KW
Machine Weight: ~4t
Molding bricks quantity:Standard block 20pcs/per mold
Eight-hole block 8pcs/per mold
Hollow block 3pcs/per mold
