GJFJBV/GJFJBZY optical fiber cable, indoor, 2 fibers, G652D/G651 SM/MM fiber, 0.9mm, kevlar, yellow/orange 2.9x5.8mm PVC/LSZH, 8 type, flat, 1km.
Features
◇Good mechanical and environmental performance
◇ Flame (or retardant) performance to meet the relevant standards
◇ Sheath of the mechanical and physical properties to meet the relevant standards
◇ Soft, flexible, and continue to facilitate
◇ Flame (or retardant) performance to meet the relevant standards
◇ Sheath of the mechanical and physical properties to meet the relevant standards
◇ Soft, flexible, and continue to facilitate
◇ Support large-capacity data transmission
◇ Meet market and user demands
◇ Meet market and user demands
◇ SM(9/125um G652D), MM(50/125 or 62.5/125um) are available
Description

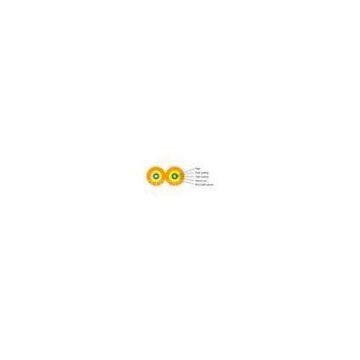

(Indoor fiber optic cable) cable structure is single mode or multimode optical fiber placed in the middle of the two non-metallic reinforcement layer of flame-retardant polyethylene extruded after ethylene sheath (LSZH).
The cable structure is compact and has excellent high temperature performance, with superior tensile strength, fiber reinforcements with excellent bending properties, with low smoke zero halogen sheath material with excellent flame retardance. Products for users to access network use.
Parameter
|
Type
|
Fiber count
|
Dimension
(mm)
|
Tensile strength(N)
|
Crush (N/100mm)
|
Min bending radius(mm)
|
Weight
(kg/km)
|
|||
|
Short term
|
Long term
|
Short term
|
Long term
|
dynamic
|
static
|
||||
|
GJFJBV
(PVC)
GJFJBZY
(LSZH)
|
2
|
1.6x3.3
|
60
|
120
|
-
|
-
|
50
|
30
|
50
|
|
2
|
1.8x3.7
|
80
|
160
|
-
|
-
|
50
|
30
|
5.0
|
|
|
2
|
2.0x4.1
|
100
|
200
|
200
|
1000
|
50
|
|
6.0
|
|
|
2
|
2.4x4.9
|
100
|
200
|
200
|
1000
|
50
|
30
|
9.0
|
|
|
2
|
2.8x5.7
|
160
|
300
|
200
|
1000
|
60
|
30
|
10.4
|
|
|
2
|
3.0x6.1
|
160
|
300
|
200
|
1000
|
60
|
30
|
11
|
1. The typical values in the table may be adjusted accordingly
2. Different specifications are available upon request
3. Environmental properties
Temperature range:-20~+60℃
4. Fiber type: SM 9/125um G652D/G655/G657
MM 50/125um, 62.5/125um G651
5. Jacket material: PVC or LSZH
6. Jacket color: SM-yellow; MM-orange
7. Delivery length: 1km; 2km or customer specify
Applications
◇ FTTH network
◇ Fiber optic communication network
