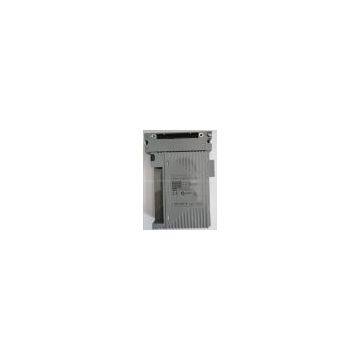

Yokogawa Models ANS20 AND20

Models ANS20, AND20 Node Interface Unit(for RIO, Cabinet Installation Type)

 GENERAL

A node consists of the Node Interface Unit (NIU) and Process I/O Unit (IOU). The NIU offers an interface function to send analog and contact I/O signals from a field to the Field Control Unit (FCU) via an RIO bus,and it offers the function to supply power to the IOU.

ANS20, AND20 is a Cabinet Installation Type NIU,which is used for single and redundant RIO bus. As for 19" Rack Mountable Type NIU (Model ANS50, AND50) refer to GS33Q06K30-31E.The IOU consists of I/O module for connecting process signals, and I/O module nest to store the module. For details, refer to “I/O Module Nests I/O Modules (GS 33Y06K40-31E).”

 HARDWARE SPECIFICATIONS

For the installation specifications and environmental conditions that are common to the systems, refer to

“System Specifications (GS 33Q01B10-31E).”

Configuration

Vertical Type Structure: Mounted on the FCU (with Cabinet) or I/O expansion cabinet.

Card Configuration:

Communication interface unit (2 cards when duplexed).

Power Supply Unit (2 cards when duplexed):

For supplying power to the IOU.

Installation Restrictions

Max. of 5 I/O Units for one node interface unit. However, when mounting on the front side of the FCS

cabinet, then max. is 4 owing to space restrictions.

Power Supply

(Specify with Suffix Codes)

100-120 V AC, 50/60 Hz

220-240 V AC, 50/60 Hz

24 V DC

Electric Power Consumption

100-120 V AC: 320 VA

220-240 V AC: 320 VA

24 V DC: 7.5 A

Weight

25 kg (FCS front side mountable type (ANS20-F1), with 4 IOUs).

26 kg (FCS front side mountable type (AND20-F4), with 4 IOUs).

30 kg (FCS rear end mountable type (ANS20-R1), with 5 IOUs).

31 kg (FCS rear end mountable type (AND20-R4), with 5 IOUs).

Regulatory Compliance

For the detailed information of following standards, see“System Overview (GS 33Q01B10-31E).”

Safety Standards

[CSA] (for 100-120 V AC power supply)

[CE Mark] (for 220-240 V AC power supply)

EMC Conformity Standards

[CE Mark] (for 220-240 V AC and 24 V DC power supply)

[C-Tick Mark] (for 220-240 V AC and 24 V DC power supply)

ANB10S ANB10S-410 ANB10S-420         ANB10S-430 ANB10S-440 ANB10S-411 ANB10S-421 ANB10S-441

         ANB10S-310 ANB10S-320 ANB10S-330 ANB10S-340 ANB10S-311 ANB10S-321 ANB10S-341

         ANB10S-410/CU1N ANB10S-420/CU1N ANB10S-430/CU1N ANB10S-440/CU1N

ANB10S-410/CU1T ANB10S-420/CU1T ANB10S-430/CU1T ANB10S-440/CU1T

ANB10D ANB10D-410 ANB10D-420 ANB10D-440

         ANB10D-411 ANB10D-421 ANB10D-441

         ANB10D-410/CU2N ANB10D-420/CU2N ANB10D-440/CU2N

         ANB10D-411/CU2N  ANB10D-421/CU2N ANB10D-441/CU2N

         ANB10D-410/CU2T ANB10D-420/CU2T ANB10D-440/CU2T ANB10D-411/CU2T  ANB10D-421/CU2T ANB10D-441/CU2T

ANR10S ANR10S-410      ANR10S-420    ANR10S-440

         ANR10S-310    ANR10S-320    ANR10S-340

         ANR10S-413    ANR10S-423    ANR10S-443

         ANR10S-313    ANR10S-323    ANR10S-343

         ANR10S-410/NDEL ANR10S-420/NDEL ANR10S-440/NDEL

         ANR10S-413/NDEL ANR10S-423/NDEL ANR10S-443/NDEL

ANR10D ANR10D-410 ANR10D-420 ANR10D-440 ANR10D-413 ANR10D-423 ANR10D-443 ANR10D-410/NDEL ANR10D-420/NDEL ANR10D-440/NDEL ANR10D-413/NDEL ANR10D-423/NDEL ANR10D-443/NDE

Dummy Cover:ADCV01 ADCV02
