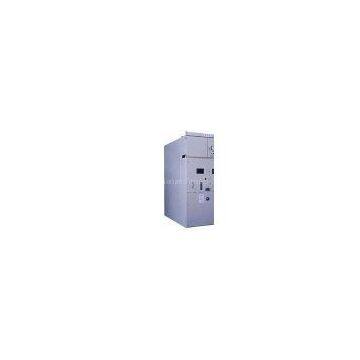

33kV-40.5kV Switchgear Panel
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Tianan
Place of Origin:
China
Model Number:
KYN10-40.5
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
11kV Prefabricated Substation Switching StationNegotiableMOQ: 1 Piece -
Low Voltage Switchgear PanelNegotiableMOQ: 1 Piece
-
Manifold Cable Manifold Plastic Auto PartsNegotiableMOQ: 1000 Pieces
-
Terminal Brackets Terminal BlockNegotiableMOQ: 100 Pieces
-
Cable Tie Cable Fixing Tie Plastic Auto PartsNegotiableMOQ: 100 Pieces
Brand Name
Tianan
Place of Origin
China
Model Number
KYN10-40.5
Product feature :
It is a metal-clad type of switchgear, and it consists of two components, one is main body welded by sectioned steel and bent steel plate and another component is truck. It is the latest self-designed and developed version of switch by introduction of advanced technology in domestic and abroad . With advantages of a smaller size, a big breaking current, easier installation, a long-free-maintenance duration, this kind of switchgear has characters of easy operation and maintenance, safe operation, five-protection function and inter-lock capacity, etc as well.
Technical parameter :
Rated voltage (kV)
40.5
Rated current (A)
1250,1600
Rated short circuit breaking current (KA)
25,31.5
Rated peak withstand current (peak) (KA)
63,80
4s short time withstand current (KA)
25,31.5
Rated insulation level
1min power frequency withstand voltage (KV)
Phase to earth?? phase to phase
95
Isolating distance
118
Lightning impulse withstand voltage(kV)
Phase to earth, phase to phase
185
Isolating distance
215
Fitted in circuit
breaker
Vacuum circuit breaker, SF6 circuit breaker
ZN12-40.5 ,ZN23-40.5 ,3AH
(SIEMENS)
Type FP (ALSTOM), LN2 serial
Dimension (width*depth*height)
(mm)
1400x2200x2725
(welding)
1400x2210x2725
(assembly)(note1)
packing Dimension(width*depth*height)(mm)
1720x2380x2870
(note 2)
Weight(circuit breaker cubicle)(kg)
1700 (including 600,weight of truck)
Protection degree
IP2X
Place of Origin: Zhejiang in China
Serial / Model No.: KYN10-40.5
Trademark / Brand: Tianan Electric
Packing: Wooden case or other method approved
Payment Terms: L/C, T/T
Minimum Order: 1 Set/Sets
Production Capacity: 50sets per month
Shipping: 1 Month
