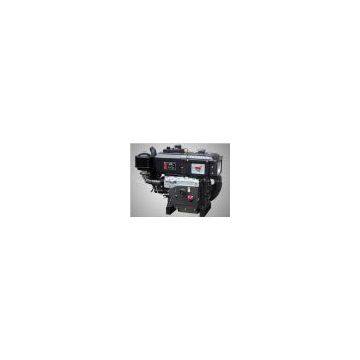

Name: H14 Diesel Engine
Brand: HBE
SKU: 147344636
Availability: InStock

ALL CATEGORIES

H14 Diesel Engine

Send Inquiry to This Supplier

Mr Wen

General Manager

Weifang Huadong Diesel Engine Co Ltd

Weinan, Shaanxi, China

Message

0/5000

* Email

	H14	H18	H20	H23	H25	H28	T20	T25	T35
TYPE	Single-cylinder,air-cooling,4-stoke,horizontal
chamber	direct-injection	direct-injection
bore(mm)	95	100	105	115	115	125	105	115	130
stroke(mm)	98	120	120	115	120	120	120	120	125
Displ(L)	0.694	0.942	1.039	1.194	1.246	1.473	1.039	1.246	1.659
rated power /speed	9.7/2400	12.7/2200	14.7/2300	17/2300	18/2300	20/2200	14.7/2300	18/2300	24/2300
Max torque (N.m)	≥43.2	≥61.7	≥68.4	≥79	≥83.7	≥97.2	≥68.4	≥83.7	≥111.6
speed (max torque)(r/min)	≤1920	≤1760	≤1840	≤1760	≤1840
fuel consump (g/kw.h)	≤245	≤235	≤240	≤244.8
ilding (r/min)	≤800	≤800
compression ratio	19	17	17
starting type	Hand cranking or electronic	Hand cranking or electronic
Net weight(Kg)	102	145	150	185	185	208	150	185	208
Dimension(mm)	730×390×570	836×410×640	836×410×664	875×450×688	875×450×688	916×475×709	836×410×664

H14 Diesel Engine

Product Details
