XN777excavation Car Loader

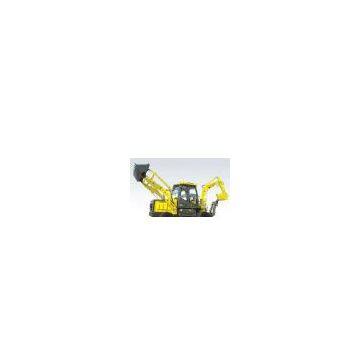

XN777excavation Car Loader photo-1
US$ 15000 - 40000 MOQ: 1 Kilogram
Key Specifications
Get Latest Price
Brand Name:
HBE
Place of Origin:
China
Model Number:
XN60-7
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Brand Name HBE
Place of Origin China
Model Number XN60-7
XN777excavation car loader

 XN777 series excavator is economic multi-purposes machine newly developed by our company, which is also known in china as two-ends busy because it could dig, load &unload, level, transport, smash, revolving dig etc. there are two choices for customers such as four-drives XN7774Ltwo-drives XN7772L. The most important is its superior performance and reasonable price to make users get the fast benefit reciprocation.
  The main characteristics are follows:
        The most mature hydraulic walking system is selected for its strong driving force and easy and fast to operate.
           Four-wheel drive could guarantee good pulling capacity. Double-pipeline four calipers brake is stable and safe.
           Wide operation space has good vision and comfortable seat.
           Reasonable dynamic match and excellent overall performance with superior operation efficiency.
           It could add various work devices to satisfy customers any requirements.
On A overall width                                                             1885
B cab overall width                                                            1030
C cab entire high                                                               2575
D rear part radius of gyration                                          1650
E smallest ground clearance                                         300
F guide wheel and driving gear center distance         1990
G shoe belt length                                                             2500
H belt distance                                                                   1480
I caterpillar band board is wide                                      400
J span                                                                                  5850
K has the caterpillar band overall width                        2000


Hydraulic system
Main pump                 Type                                                        Variable axial ram pump
Main pump                 Maximum current capacity                  2*55Lmin (2*14.5USgpm)
Main pump                 Quantity                                                   2
Forerunner pump     Type                                                        Gear pump
Forerunner pump      Maximum current capacity                 9.9 Lmin (2.9USgpm)
Rotary motor              Overflow valve                                       200kgf/cm2 (3,129psi)
Main overflow valve   Moves the arm/bucket arm/scoop    200kgf/cm2 (2,129psi)
Main overflow valve   Walks the return route                         200kgf/cm2 (2,129psi)

Work scopeUnit: (mm)
Moves the arm length                                  3200
Bucket arm length                                        1600
A biggest excavation scope                        6200
B biggest digging depth                              3400
C biggest excavation altitude                      5760
D most ex-denning altitude                         4030
Scoop excavation strength (ISO)                37.7KN
Bucket arm excavation strength (ISO)       28.4 KN
