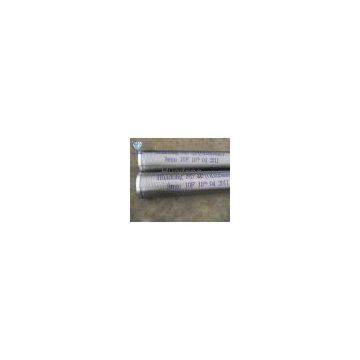

Help CenterCarbon Steel Wire Wedged Johnson Screens
Related Products
-
China Cheap Two Layers Pipe Base ScreenUS$ 96 - 96MOQ: 10 -
Industrial Use Wedge Wire Well Screen Strainer BasketsUS$ 76 - 76MOQ: 10
-
Reverse V-shaped Wire Wrap Johnson ScreensUS$ 56 - 56MOQ: 10
-
HuaDong 9 Inch Continuous-slot Johnson ScreensUS$ 45 - 45MOQ: 10
-
Continuous-slot Water Well ScreenUS$ 60 - 60MOQ: 1
We can provide not only continuous slot johnson screens or pipe base screen or pipe base screen, but all of your pipe, centralizer,sieve plate, water and gas strainer, and other accessories needed for completion and sand control. Continuous slot johnson screens are manufactured by a v or wedge shapped wire around an internal array of longitudinal support rods. Each interesting point of these wires is fusion welded. The v or wedge shapped profile wire wraps around the support rods over the full length of the screen creating a continuous slot opening, hence the screen allows water (oil) to enter your well freely in ample quantities, while at the same time keeps the majority of sand and gravel out of the wells.
|
Normal size (mm) |
ID (mm) |
Thickness (mm) |
Coupling OD (mm) |
|
50 |
38 |
4 |
52 |
|
60 |
50 |
4 |
62 |
|
70 |
60 |
4 |
72 |
|
80 |
70 |
4 |
72 |
|
90 |
80 |
4 |
92 |
|
108 |
98 |
4 |
110 |
|
127 |
108 |
6 |
129 |
|
146 |
149 |
4 |
161 |
|
159 |
140 |
6 |
161 |
|
178 |
168 |
4 |
180 |
|
219A |
200 |
6 |
221 |
|
219 |
222 |
4 |
234 |
|
245A |
224 |
6 |
246 |
|
245 |
249 |
4 |
260 |
|
273 |
252 |
6 |
275 |
|
325 |
306 |
6 |
326 |
|
377 |
358 |
6 |
379 |
|
426 |
406 |
6 |
428 |
|
478 |
458 |
6 |
480 |
|
529 |
508 |
6 |
530 |
|
630 |
610 |
6 |
632 |
|
720 |
700 |
6 |
722 |
|
800 |
780 |
6 |
802 |
|
1000 |
980 |
6 |
1002 |
|
1200 |
1180 |
6 |
1202 |
Packing details:
Single with bubble bag and then in wooden case.
Each case is clearly marked with:
Name & identification mark of manufacturer-HuaDong Brand
Batch number
Date of manufacture
Safe heating & application temperature
