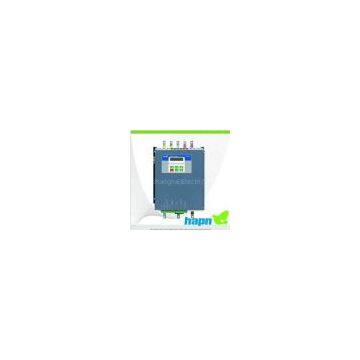

Soft Starter

Model: HPS2DN Series  Low voltage Soft Starter , MOTOR CONTROLLER

Feature

Multilanguage supported, LCD display, parameter setting in button type

RS485 with communication interfac3 Modbus/Profibus protocol

Programmable digital input and output

Perfect function of start-stop control and protection

Continuous online running without bypass, high reliability

Parameter

Main supply:   230- 690VAC   50/60Hz

Control supply: 110- 120VAC   50/60Hz

              220- 240VAC   50/60Hz

Control input signal voltage:  110- 120VAC   50/60Hz

                           220- 240VAC   50/60Hz

Rated load current: 17- 950A

Ramp up time: 1- 30s   can be extended to 90s

Ramp down time: 1- 30s   can be extended to 90s

Initial voltage: 10- 50%Un

Current limit: 100- 400%FLA

Maximum start times per hour: four times per hour at 400% FLA

Pulse start: 80%Un,time: 0- 1s

Low speed running time: less than 30s

Pump control curve number: 6

Velocity feedback curve number: 12

Language: four languages selectable
