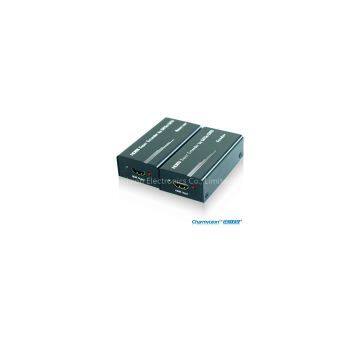

Charmvision EH601,via UTP Cable 60 Meters HDMI Extender

NAME:60 meters HDMI extender

MODEL:EH601

        → Support HDMI 1.3 protocol

        → HDCP 1.2 protocol compliant

        → Support video input: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

        → Signal transmission: Double cat-5e or cat-6(recommended) cables up to 60 meters instead of HDMI cables are connected between TX and RX Extender.

        → Support video output: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

        → Support CEC

        → Audio format support: DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD

        → LED indication: when power is supplied or device is working, LED relative to is light.

        → Support up to 20metres AWG26 cable length between extender and source & sink device

        → No loss of quality

        → Installs in minutes

        → Need DC DC5V/2A power supply

        Length of CAT-6 cable between Rx and TX: Up to 60 meters

        HDMI Input: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

        Support audio format input: DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD

        HDMI Output: 4/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

        Support audio format output: DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD

        Max transmission bandwidth: 5.1Gbps

        Input Video signal: 0.5~1.5Volts p-p

        Output DDC signal: 5Volts p-p (TTL)

        Input / Output HDMI1.3 cable distance: ≤20m AWG26 HDMI 1.3 standard cable

        Max working current: 450mA

        Power adapter format: DC5V/2A

        Operating Temperature range: -15 to +55°C

        Operating Humidity range: 5 to 90%RH (No Condensation)

        Dimension (L WH): 82*45*21 (mm)

        Weight: 220g
