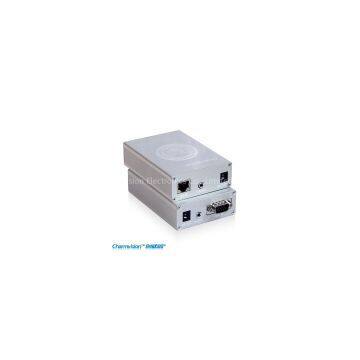

Charmvision EV200HR, 200 meters Audio & VGA extender with adjustment & anti-lightning, Stereo audio and could manually to correct the image

NAME:200 meter VGA & Audio Extender

MODEL:EV200HR

Ⅰ.Product Introduction

       This product includes a Sender (VGA Extender Sender) and a Receiver (VGA Extender Receiver). It can extend Audio and Video signal of the computer max up to 200m through a single cat5e cable. It also provides a VGA port on Sender part for local use. Besides, the brightness and clearness of remote picture image is adjustable by hand.

       The product can be widely used in computer and monitor field, large screen advertisement, education, bank and industry etc.

       With clarity and brightness adjustment and anti-lightning function.

Ⅱ.Installation

       Typical application

       Installation Steps:

       Please adjust the computer, VGA display equipment and prepare enough cable.CAT5E cable sequence should be: orange-white (1) orange (2) green-white (3) blue(4) blue-white(5) green(6) brown-white(7) brown(8) Make sure you switch off the power before you install it, and then follow the following steps:

        (1)  Connect VGA Video port of the Sender (VGA IN) with VGA Video port of the display card by using 1.5m VGA cable

        (2)  Connect video port of local monitor to VGA video port of the Sender.

        (3)  Connect the port of the sound card of the computer to Audio port of the Sender (Audio) by using 1m Audio Link Cable

        (4)  Insert one head of CAT5E cable to RJ45 port of the Sender

        (5)  Install the power adaptor for sender.

        (6)  Connect remote monitor to VGA port of the Receiver (VGA)

        (7)  Connect Audio device to Receiver (Audio).

        (8)  Connect the other head of CAT5E cable to RJ45 of the Receiver.

        (9)  Install the power adaptor of receiver.

        (10)  Switch on power of the Receiver, then user can see the light of the Receiver is on.

        (11)  Switch on the power of the Sender, and then user can see the light of the Sender is on.

       Switch on the computer. Use screwdriver to adjust the brightness and clearness of remote picture image (B and C port on the Receiver). “B” is for brightness and chromaticity, “C” port is clearness.

Ⅰ.Technical Specification

        Size: 110mm*70mm*25mm;

        Weight: 1.0kg;

        Cable Type: CAT5, CAT5E, CAT6, UTP, CAT5E and UTP is recommended;

        Resolution support:  max 1920*1440;

        Video type:  VGA, SVGA, XGA, SXGA, UXGA;

        Video Standard: 0.7Vpp;

        Connector: HDB15, RJ45;

        System Support: N/A;

        Sender Power:  AC7.5V  1A above;

        Receiver Power:  AC7.5V  1A above;

        Receivers with clarity and brightness adjustment;

        With anti-lightning function.
