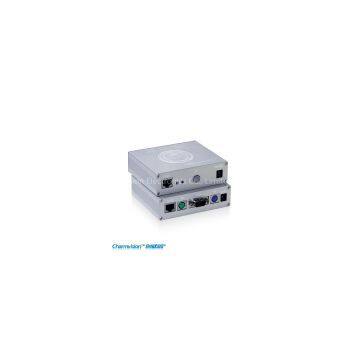

Charmvision 100 Meters KVM Extender VGA&PS/2 via UTP Cat5E Cable EKP100HR

NAME:100 meters KVM Extender VGA+PS/2 port

MODEL:EKP100HR

Product Introduction

   This product includes a Sender (Remote KVM Sender) and a Receiver (Remote KVM Receiver). It can extend power switch, keyboard, mouse, video port of computer max up to 100 meters. User can remotely switch on/off computer or use computer. It provides a KVM port on sender part for local use. Such as user can put the desktop into a data service center, then put the computer in a much safer place, which is convenient and good for maintenance, data security and workstation management, and it also helpful to reduce the noise and heat, and could prevent lightning invasion and high potential hazards.

   This product can be widely used in data service center, industrial control, video education, bank telecommunications, enterprise computer management, family use etc.

    With clarity and brightness adjustment and anti-lightning function.

  Technical Specification

        Size: 130mm*100mm*30mm

        Weight: 1.0kg

        Cable Type: CAT5, CAT5E, CAT6, UTP, CAT5E UTP is recommended.

        Video Type: VGA, SVGA, XGA, SXGA, UXGA, LCD

        Video Standard: 0.7Vpp

        Connector: HDB15   Mini—D1N6   RJ45

        Keyboard Support: PC1AT, PS/2

        Mouse Support: standard PS/2 mouse, Microsoft mouse, three keys PS/2

        System Support: DOS, Windows, NT, Linux

        Sender Power:  DC12 1A

        Receiver Power: DC12V 1A

        Extend  Distance: 100 meters

        Anti-lightning Index: air-discharge 15KV, contiguity-discharge 8KV.

        Receivers with clarity and brightness adjustment.

   Packing Instruction

        When you open the packing, you will find:

        1. Sender (Remote KVM Sender)    1PCS

        2. Receiver (Remote KVM Receiver)    1PCS

        3. Power adapter    2PCS

        4. KVM link cable     1PCS

        5. Screwdriver    1PCS

        6. User Guide     1PCS

        7. Warranty card (attached together with User Guide)    1PCS
