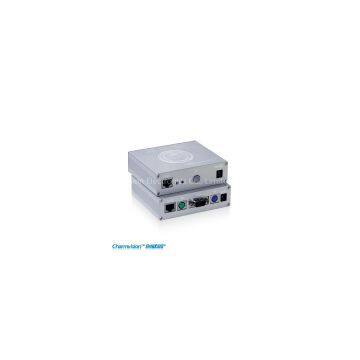

Charmvision EKP600HR, 600m KVM extender, via UTP Cat 5E cable to Extend VGA & K & Mouse for For connect to Computer & Hard-Disk-Recorders

PRODUCT NAMED: 600 meters PS/2 KVM Extender, with anti-lightning and Image Correction,  about 500m is best.

PRODUCT BRAND: Charmvision

PRODUCT MODEL: EKP600HR

PRODUCT INTRODUCTION

    The Extender includes a Sender and a Receiver. It can extend Power-Switch & Keyboard & Mouse and VGA port signal of the computer max up to 600 meters (about 500m is best) through a single Cat5E cable. Also provides Switch & Keyboard & Mouse and VGA port on Sender for local use, convenient to maintenance and workstation management, also well for data security, helpful to reduce the noise and heat.

    It can widely used in the Computer-System, Monitor-System, Data-Service-Center, Industrial-Control, Enterprise-Computer-Management, Education, Banking, Securities-System, Family etc..

    The Receiver with clarity and brightness adjustment function, could to adjust the Brightness and Clearness manually, make remote display without blurring and smearing.

APPLICATIONS

TECHNICAL SPECIFICATION

Input Signal

VGA *1 Keyboard *1 Mouse *1 Switch *1(optional)

Output Signal

Sender: VGA *1 Keyboard *1 Mouse *1

Receiver: VGA *1 Keyboard *1 Mouse *1

Extend Distance

100~600 meters  (about 500m is best)

Video Interface

Input: M HDB 15PIN VGA

Output: F HDB 15PIN VGA

Video Type

VGA/SVGA/XGA/SXGA/UXGA

Video Bandwidth

350MHz -3db (full load)

0-150MHz +6db~-0.8dB

0-10MHz +0.1dB

Resolution

Up to 1920*1440

Image Correction

Sender: Auto

Receiver: Auto

Keyboard Interface

PS/2 6PIN F

Mouse Interface

PS/2 6PIN F

Transmission Interface

RJ45

Input Impedance

75

Output Impedance

75

Cable Type

CAT5/CAT5E/CAT6 UTP/STP, recommend to use UTP cable

Protection Class

Transport interface: 1KV

Contact discharge: 8KV

Air discharge: 15KV

MTBF

>50000 hours

System Support

N/A

Power Consumption

<6W

Operating Temperature

-15~+65

Storage Humidity

0~90% (no condensation)

Power Supply

DC12V/1A

Weight

0.4Kg *2

Dimensions (LWH)

110*93*32mm

120*93*32mm (include interface)
