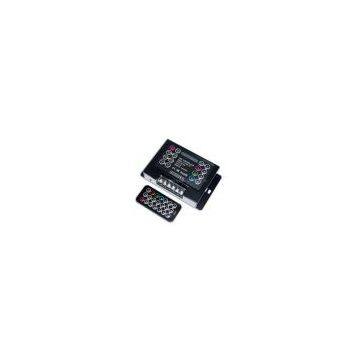

DIY RGB led controller is a unique DIY version as well as a powerful
combination that can control color changes of LED lights with 4-pin 6-channels
(Common anode), built-in 18 modes with touch functional buttons,provided
with IR wireless remote control panel, users can control color changes of LED
light by pressing the button on the controller or on the remote control panel,
very users friendly.
Technical Specs
Power supply chosen: DC CV SMPS
Scale level: 256 steps per RGB
Input voltage: DC5V~DC24V
Static dimming: mixing up 4096 colors
Max load current: 8A/CH×6CH
Working temperature: -30℃ -65℃
Max load power: 240W/576W/1152W(5V/12V/24V)
Dimension: L142×W73×H30mm
Changing mode: 18kinds mode
Weight (G.W): 350g
Features
1. Automatic switch from DC5-DC24V.
2. With 24 Buttons IR Wireless remote control, reliable control distance can reach as far as 10m.
3. Several DIY Storage Buttons, to record your favorite effect .
4. 0-100% dimming and 16 levels of static brightness per RGB, can mix 4096 colors.
5. 6-Channel RGB full color control, maximum outputs 8A per Channel.
6. 256 Grey steps per RGB, color-smooth effect is gentle and accurate.
7.Can choose changing speed separately and adjust the brightness of each mod e.
8.Can rest at current color and color depth by selecting PAUSE function.
