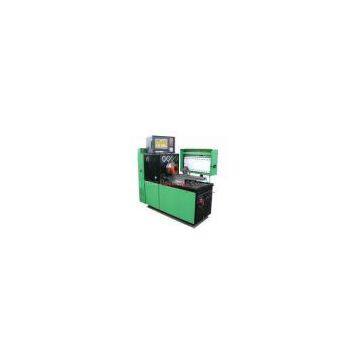

12PSB-EMC Fuel Pump Test Bench

Characteristics

Functions

Technical Parameters

Changing frequency changing rotation speed;

Small fall of rotation speed and large output torque;

High measurement precision;

The functions of overvoltage, overload and short circuit protection;

Eight kinds of rotation speeds presetting;

Constant temperature controlled; Ultra low noise;

Operating position: arbitrary side of the two work sides of the test stand;

Advance angle, rotation speed, count ,temperature and air pressure are displayed on15"CRT or LCD; (may selection)

Built-in air resource;

Data can be searched and printed.(may selection)

Measurement of each cylinders delivery at various rotation speeds;

Checking of each cylinders injection time with static state;

Checking of the mechanical speed governors;

Checking of the electric magnetic valve of distributor pumps;

Checking performance of the pneumatic governors;

Checking of the pressure compensators(LDA);

Measurement of the reflux delivery of distributor pumps; (may selection)

Measurement of the internal pressure of the distributor pumps body;

Measurement of rack travel; (may selection)

Measurement of advance angle; (may selection)

Adjustable rotation speed range:0~4000RPM;

Double Series of graduates:45CC150CC;

Volume of oil tank:60L;

Temperature stabilization:402;

Test oil filtering unit:5;

D.C.Supply:12V/24V;

Feed pressure:low:0~0.4Mpa,high:0~4Mpa; Center height:125MM;

Air pressure:0~0.3Mpa;

3-phase power supply:380V/50HZ or on request;

Flywheel inertias moment: 0.8KGM2

Output power:5.5KW7.5KW11KWand 15KW or on request;

Overall dimensions(MM)19209601830;

Net weight(KG):1200.
