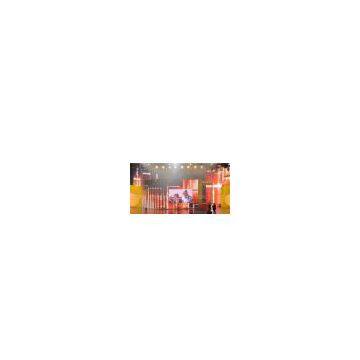

High Resolution P5 Indoor Led Display Screen Illuminated Wall Panels for Stage

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	S&B		Place of Origin	China
Model Number	SBI-P5

Delivery Time:10~20 days
Certification:CE, RoHS, CCC

High Resolution P5 Indoor Led Display Screen Illuminated Wall Panels for Stage

2011 Asian cup LED supplier

1. CE RoHS certificate

2. 24 months warranty and Life long free tech-support

3. Excellent contrast ratio, high resolution/high definition

4.Perect uniformity and no mosaic

5. Light weight and easy to install

6. Available models:P4, P5, P6, P7.62, P8, P10, P12, ect.

Application:

Commercial advertising, stadium, TV studio, mobile media, night club, entertainment events, business establishments;

Advantage:

1. High Contrast ratio: 4000:1

2. First-class LED chip:

3. Clear vivid image quality:

4. Long life time of more than 70, 000 hrs.

5. Easy Installation & Operation

SBI-P5 (Pitch 5mm indoor full color-1/8 scan)
Technique	SMD
Pixel structure	1R1G1B 3in1
Pixel pitch	5mm
Pixel density	40, 000 dots/㎡
Luminance	2, 200cd/㎡
Module dimension	160mm(W) * 160mm(H)
Module resolution	32 pixel(W) * 32 pixel mm(H)
Cabinet dimension	640 * 480mm
Cabinet resolution	128 * 96
Cabinet area	0.307 sq. meter
Optimal visual distance	>4m
Visual angel	140 degree (H/V)
Max power consumption	≤1800w / ㎡
Average power consumption	≤700w / ㎡
Brightness adjustment	Adjust according to the environment
Brightness adjustment	brightness software (0%-100%adjustable)
Gray scale	point by point 4096 gray grade levels of
Gray scale	each color, 16 bits γ correction available
Drive mode	1/8 dynamic scan, constant current
Frame frequency	≥60HZ
Refresh frequency	≥480HZ
Input voltage	AC 90~260 volts
Operation temperature	﹣40℃~ +60℃
Operation humidity	10％～90％
Input signal	S-video, RF, RGB, Yuv, YC, composite…
Control system	DVI card + master control card + receiver card
MTBF	>5000 hrs
Life span (50% brightness)	100, 000 hrs
Malfunction dot rate	1/10000
Ingress protection rate	IP31
Cabinet material	Epoxy paint coated, aluminum / iron
Application:	Rental / Permanent installation available
