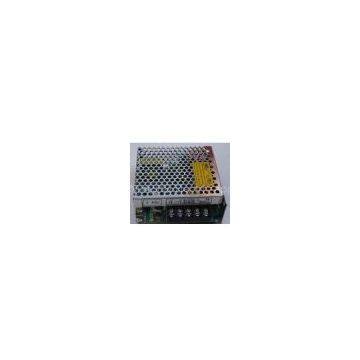

Power Supply Single Output 25W With Universal DC Input/Full Range

Index Type

S-25-5

S-25-12

S-25-15

S-25-24

DC Voltage

5V

12V

15V

24V

Voltage Tolerance

¡À2%

¡À1%

¡À1%

¡À1%

Rated Current

5A

2.1A

1.7A

1.1A

CurrentRange

0-5A

0-2.1A

0-1.7A

0-1.1A

Ripple&Noise(Max.)

50mVp-p

100mVp-p

100mVp-p

100mVp-p

Line Regulation

¡À0.5%

¡À0.5%

¡À0.5%

¡À0.5%

Load Regulation

¡À1%

¡À0.5%

¡À0.5%

¡À0.5%

Rated Power

25W

25.2W

25.5W

26.4W

Efficiency

72%/115VAC

76%/115VAC

77%/115VAC

80%/115VAC

Voltage Adjust Range

+10 -5%

¡À10%

¡À10%

¡À10%

VoltageRange

85¡«264VAC 47¡«63Hz;120¡«370VDC

AC Current

0.6A/115V 0.35A/230V

Inrush Current(Max.)

cold start current¡¡15A/115V 30A/230V

Leakage Current

<0.75mA/240VAC

Overload Protection

105%¡«150%TYPE:OUTPUT CUTOUT¡¡auto recovery

Over-voltage Protection

115%-135%

Over-temperature Protection

......................

Temp.Coefficient

¡À0.03%/¡æ(0¡«50¡æ)

Setup.Rise, Hold Time

800ms, 50ms, 10ms/115VAC 300ms, 50ms, 80ms/230VAC

Vibration

10¡«500Hz, 2G 10min, /1cycle, 60min, each axes

Withstand Voltage

I/P-O/P:3KVACI/P-FG:1.5KVACO/P-FG:0.5KVAC

Isolated Resistor

I/P-O/P, I/P-FG, O/P-FG:500VDC/100M¦¸

Working Temp.Humidity

-10¡æ¡«+60¡æ(REFER TO CHARACTER CURVE), 20%¡«90RH

Storage Temp.Humidity

-20¡æ¡«+85¡æ, 10%¡«95%RH

Dimension
