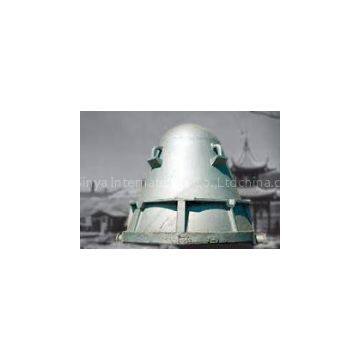

Cast Steel Slag Pot, Cast Iron Slag Ladle

Cast Steel Slag Pot, Cast Iron Slag Ladle

1. Material

Cast Steels with differing chemical compositions but defined mechanical properties play a dominant role in the manufacture of slag pots. Standard specifications of Cast Steel for slag pots may be found here

Standard Specifications for Cast Steel
CountrySpecification Grade
United KingdomBS 3100: 1991425-A2
USAASTM A 2760-30
GermanyDIN 17182GS-16Mn5
JapanJIS G7821: 2000SC42
InternationalISO 3755: 1991

2. The mechanical properties for Cast Steel slag pots are given below

USAEurope
Tensile strengthpsi>60000>65000
MPa>414>448
Yield strengthpsi>30000>35000
MPa>207>241
Elongation%>24, 0>35, 0
Reduction of area%>35, 0>40, 0


3. Delivery condition: Normalised
Note regarding the material selection: Due to obvious advantages in terms of service life and maintenance
Cost-efficiency, cast steel has been becoming more significant in the slag pot construction over the last
Years versus both materials, spheroidal cast-iron and lamellar graphite cast-iron. In contrast to other
Materials, cast steel offers excellent repair possibilities as it is well-suited to welding.

Any enquiries, please do not hesitate to contact us, and welcome your drawing and OEM requirements
