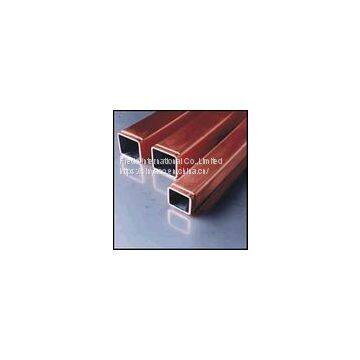

Copper Moulds, Copper Mould Tubes for Continuous Casting Machines
Fredo, in metallurgical field for many years, is offering good quality copper mould tubes to the customers worldwide.Copper mould tube is used for continuous casting machine(CCM) as a critical component. Molten steel is directly poured into the copper mould-inside of crystallizer assembly, under the cooling water, the molten steel is rapidly solidified. Meanwhlie with the drawing of dummy bars, the billet is out of crystallizer. Our copper moulds have good thermal conductivity, good wear resistance, good corrosion resistance and long worklife.
Tubular Moulds
| Mould Type | Size (mm) | Camber Radius (mm) | Wall Thickness (mm) | Length (mm) | Taper | Material | Coating |
| Square mould | 50x50-650x650 | 3000-17000 | 6-50 | 600-1100 | Single taper, double taper, triple taper, quadruple taper,parabolic taper,multi taper, continuous taper etc. | SF-CU, Cu-AG, Cu-Cr-Zr | Chromium; Nickel and Cobalt; Ni-Co+Cr composite coating etc |
| Rectangular mould | (100x500) x650 | 3000-17000 | 6-50 | 600-1100 | |||
| Round mould | φ90-1200 | 5000-17000 | 10-50 | 600-1000 | |||
| Beam Black mould | as per order | 5000-17000 | 10-50 | 700-1000 |
We are also supplying various plate type moulds for casting slab, thin slab, and ultra thin slab.
With good quality products and professional services, Fredo has achieved excellent reputation from customers worldwide. If you have any requests, please feel free to contact us.--- gloriatrade@126.com
