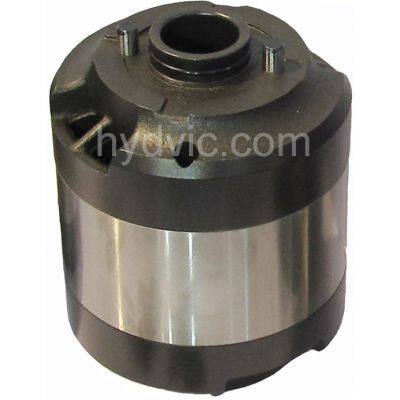

25M, 35M, 45M, 50M 26M, 36M, 46M, 51M Vickers Vane Motor Cartridge Kits

Vickers Vane Motor cartridge kits 25M, 35M, 45M, 50M 26M, 36M, 46M, 51M

Vickers high performance vane motors, when properly installed in a hydraulic circuit, convert hydraulic power into rotary mechanical power. They are positive-displacement, balanced cartridge units, with drive speed dependent on the motor size and gpm delivery to the inlet port. The units are capable of operating at high speeds and high pressures, or higher speeds at lower pressures.

The unit consists principally of a body, cover, drive cartridge and shaft. Rotary motion is developed in the cartridge, which principally consists of a ring, rotor, ten vanes and two pressure plates. The rotor is splined and mates with the output shaft, which is supported by a ball bearing in the body and a bushing bearing in the cover pressure plate.


Old Assembly cartridge kits part number:
923160-9, 923161-9, 923162-9, 923165-9,
923166-9, 923167-9, 923111-9, 923110-9,
923109-9, 923099-9, 923100-9, 923101-9,
New Assembly cartridge kits part number :
R923160, R923161, R923162, R923165, R923166, R923167
R923111, R923110, R923109, R923099, R923100, R923101.
