High Resolution VGA Camera

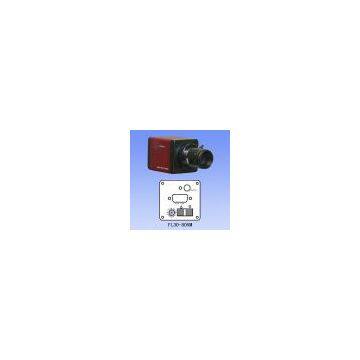

u   Model:FL30-80VM

u   VGA resolution:1024×768

u   Image pixels:5.2x5.2μm

u   Optical size: 1/2.5"

u   Color depth:8:8:8 RGB Full color output

u   Frame rate: 60fps@1024×768

u   Color adjustment: R,G,B adjusting separately

u   Output mode: Standard D-sub 15 pin, analog signal

u   Exposure mode: Fixed

u   Crosshair line: 8 lines can move freely at full screen,six colors of red, green, blue, white, black ,grey exchanged.

u   Lines width:1 pixel for each line

u   Optical lens mount: C-Mount

u   Power supply : DC 5V, 1A(Supply as attached)

u   Dimensions: 70mm×52mm×51mm

u   Working humidity: 20%~80%

u    Model:FL31-Y130

u    VGA resolution:1280×1024

u    Output interface: VGA output

u    Frame rate : 25fps

u    SNR : 45dB

u    Lens interface: C/CS

u    Storage :USB(USB support up to 4G)

u    Control functions: Wireless remote control, R,G,B gain, exposure, auto-exposure. "#" cross line position adjustment and parameters preserve.

u    Working temperature :0°C-60°C

u    Power consumption: 2.1W

u  Dimensions :130×78×45mm
