Mobile Jaw Crushing Plant

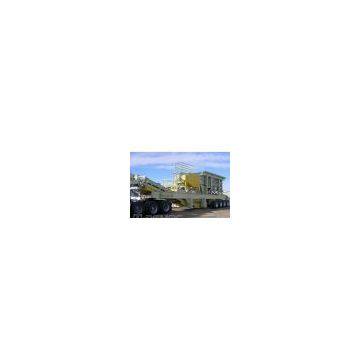

Introduction of DMP Series Mobile Jaw Crusher Plant :
DMP series Mobile jaw crusher plant puts crushing and screening process on wheels. By combining feeding, crushing and screening equipment together with belt conveyor, This plant is widely used in mine, building material, highway, rail way and hydropower industries, etc. The crushing and screening processes can be finished at one time to produce the required size and capacity.
DMP Series Mobile Jaw Crusher Plant is Ideal for:
1. Demolition and recycling
2. Quarrying and surface mining
3. Road construction
4. Civil engineering contractors
5. Aggregate production
6. Open cast coal mining
Main Customer Benefits of DMP Series Mobile Jaw Crusher Plant :
1. High crushing speed, together with large feed opening, provides impressive rates of production, yet able to provide superb reduction ratios
2. Hydraulically adjustable CSS for a variety of applications
3. Reverse crushing action to relieve blockages and automatic central lubrication system to increase machine up-time
4. Hydraulic legs for increased stability and servicing capabilities
5. Global after market support, with standard stock parts to ensure minimum loss of production
6. Machine designed for optimum fuel economy and low operating costs.
Why to Choose DSMAC DMP Series Portable Jaw Crusher Plant?
1. Portable Jaw Crusher Plant has the advantage of reasonable match, unobstructed material discharge, reliable run, convenient operation, high efficiency and energy conservation. The good mobility can make it move in and between different quarries. It can also work with other plants to meet different requirements of customers.
2. Versatility of the equipment is ensured by a comprehensive range of optional extras that allows the right crusher to precisely match the demands of your specific application
Specification Data of DMP Series Mobile Jaw Crusher Plant :
|
DMP JAW PLANTS |
DMP600 |
DMP750 |
DMP900 |
DMP1060 |
DMP1200 |
|
|
transport dimension |
Length(mm) |
8600 |
9600 |
11097 |
13300 |
15800 |
|
Width(mm) |
2520 |
2520 |
3759 |
2900 |
2900 |
|
|
Height(mm) |
3770 |
3500 |
3500 |
4440 |
4500 |
|
|
Weight(kg) |
15240 |
22000 |
32270 |
57880 |
98000 |
|
|
Axle weight(kg) |
10121 |
14500 |
21380 |
38430 |
64000 |
|
|
King pin weight(kg) |
5110 |
7500 |
10890 |
19450 |
34000 |
|
|
Jaw crusher |
Model |
PE400*600 |
PE500*750 |
PE600*900 |
PE750*1060 |
PE900*1200 |
|
Feed opening(mm) |
400*600 |
500*750 |
600*900 |
75*1060 |
90*1200 |
|
|
Setting range(mm) |
40-100 |
50-100 |
65-180 |
80-180 |
95-225 |
|
|
Capacity(m3/h) |
10-35 |
25-60 |
30-85 |
70-150 |
100-240 |
|
|
Feeder |
Model |
GZT0724 |
GZT0724 |
GZT0932Y |
ZSW200 |
ZSW300 |
|
Feed hopper volume(m3) |
3 |
4 |
7 |
10 |
10 |
|
|
Hopper width(mm) |
2200 |
2500 |
3000 |
3000 |
3000 |
|
|
Belt conveyor |
||||||
