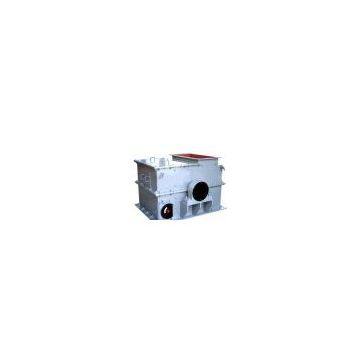

Features and performance of PCH Ring hammer crusher :
High-efficiency, Fine hammer crusher
1. Simple structure, large crushing ratio, high production efficiency
2. Energy conservation and efficiency, low noise and low dust.
3. The discharging grid plate is adjustable, it can adjust the product size and meet the different requirement of clients.
4. Alloy hammer head, good wear resistant, the life of the hammer is 1.5-2 times longer than which is made from the high manganese material.
5. Large crushing ratio.
6. High production efficiency.
7. Low noise.
Working Principle of PCH Ring hammer crusher :
PCH ring hammer crusher is a type of impact crusher with ring hammer head. The hammer not only revolves around the rotor in the driving of motor, but also revolves around the hammer shaft. When the materials are put into the cavity, it was crushed firstly by the high-speed ring hammer, then the material get the energy from the ring hammer and rush at the impact plate in a high speed, it falls down to the grid plate after the secondary broken, be sheared , extruded, grinded and be further crushed. the final product which size is less than the gap of grid hole flow down the machine, and the bigger size material will be stricken continually, and discharge the machine through the grid plate finally.
Application of PCH Ring hammer crusher :
1. PCH Ring hammer crusher is suitable for crushing all kinds of brittle materials, Such as coal gangue, coal, coke, red sandstone, slag , shale etc.
2. this Ring hammer crusher’ s Maximum compressive strength is not more than 150Mpa
3. Ring hammer crusher Not only can be used in the crushing production line, sand making production line, but also can be used in the mineral dressing instead of cone crusher.
4. the material surface moisture should be controlled in 15% with this kind of PCH Ring hammer crusher.
Technical Parameter of PCH Ring hammer crusher :
|
Type |
Rotor Dia. (mm) |
Length (mm) |
Input size (mm) |
Output size (mm) |
Capacity 9 (tph) |
|
Wight (t) |
||
|
Type |
Power (Kw) |
Rotary speed (m/s) |
|||||||
|
PCH0404 |
400 |
400 |
200 |
≤ 30 |
16-25 |
Y160-L |
5.5 |
970 |
1.05 |
|
PCH0606 |
600 |
600 |
200 |
3-60 |
30-60 |
Y225M-6 |
30 |
980 |
1.56 |
|
PCH0808 |
800 |
800 |
200 |
≤ 30 |
75-105 |
Y280M-8 |
45 |
740 |
3.6 |
|
PCH1010 |
1000 |
1000 |
300 |
≤ 30 |
130-200 |
Y315L2-8 |
110 |
740 |
6.5 |
|
PCH1016 |
1000 |
1600 |
300 |
≤ 30 |
90-350 |
Y400-8 |
155 |
740 |
9.2 |
|
PCH1322 |
1200 |
2414 |
300 |
≤ 25 |
1000 |
YKK5004-8 |
560 |
743 |
30 |
