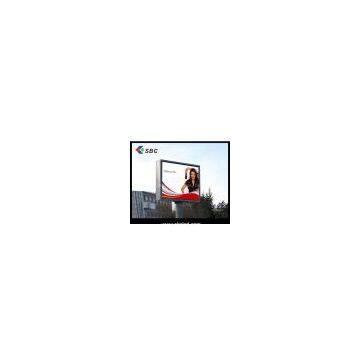

Help CenterPH10 Outdoor RGB LED Display for Advertising
Related Products
-
P25 Outdoor Full Color Mesh Led ScreenUS$ 1000 - 3800MOQ: 1 Piece -
Outdoor Full Color Led Display ScreenUS$ 1000 - 3500MOQ: 1 Piece
-
Full Color Led DisplayUS$ 1000 - 3500MOQ: 1 Piece
-
P18.75 Outdoor Full Color Rental Led DisplayUS$ 1000 - 3500MOQ: 1 Piece
-
PH14 Outdoor Led Display Electronic SignUS$ 1200 - 3500MOQ: 1 Piece
1.Outline sharpening technique: In the picture of high speed moving, it can calculate the moving picture’s outline automatically and correct the color gradation of people’s face, then to reduce the double image phenomenon of the outline edge effectively. That will create a distinct and sharp true image.
2. Even after a long time working of the display, it still can maintain the prefect picture and white balance then to reach enough brightness.
3. Large viewing angle and good uniformity.
4. High level waterproof and anti-dust function of IP65.
5. Two LAN cable warm backup function: The A, B interface in receiving both can be the signal input port or output port. Also can use two computers to control a display at the same time, when there are some problems in one computer then the other computer will replace automatically.
Parameters——Stability ,of course SBC!
| Type | Outdoor Full Color Display |
| Best Viewing Distance(m) | 34m |
| Pixel Pitch(mm) | 10mm |
| Pixel Density(Dots/sqm) | 10000Dots/sqm |
| Configuration | 1R1G1B(3-in-1SMD) |
| Module Size(mm) | 160mm x160mm |
| Unit Box Pixel(Dots) | 128Dots x96Dots |
| Cabinet Size(WxHxT) | 1280mm x 960mm x120mm |
| Cabinet Weight(Kg) | 62Kg |
| Brightness(cd/sqm) | 8000cd/sqm |
| Refresh Frame Frequency | 1000Hz |
| MTBF(H) | 10000H |
| Maximum Power Consumption(W/sqm) | 1400W/sqm |
| Average Power Consumption(W/sqm) | 800W/sqm |
| Left/right Viewing Angle(Degree) | 140° |
| Grey Scale | 12bit |
| Display Color | 16777216colors |
| Brightness Adjust | 256grade automatic,100grade manual |
| IP Standard | IP65 |
| Display Module Brightness Uniformity | 5% |
| Pixels Out Of Control Rate(Dots) | 1/100000Dots |
| Life Span(H) | 100000H |
| Operating Voltage | AC220V/50Hz&AC110V/60Hz available |
| System Working Environment Temperature | —20°C~+60°C |
| System Working Environment Humidity | 10%RH~90%RH |
