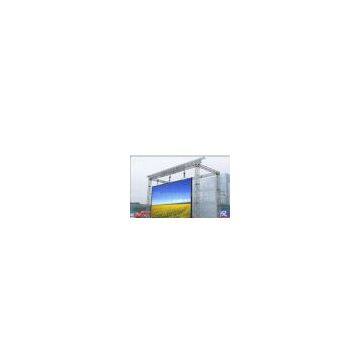

1. The bar-shaped special full color LED display belonged to the group of display for both outdoor and indoor use is mainly applic-able to the outdoor extremely large live LED display project.
2. In order to ensure enough luminance of pixels for outdoor display project, the silicone sealant has been used to seal the front s-urface of the modules for waterproof treatment and the color of silicone sealant corresponding to color charthas been customized to the requirement of project for coordinating with the color of the outside wall of the building.
3. The outlet cable of module is made of silicone material with supreme highhow temperature performance and matched with s-pecialized waterproof connector. The specialized wholly-sealed waterproof structure of modules can make the display reach IP65 of protective grade and suit varieties of indoor and outdoor humidity and temperature environment within operating temperature range of -20 +80, and even work in the rain.
4. Multiple modules can compose a full color LED display wall.
5. It can be used as linear light source instead of the digital tube, and the lighting effects of linear light sources consisted of conti-nuous pixel light are more excellent.
6. Led display/Led screen/25mm, 31.25mm or 40mm pixel pitch.
product parameters——stability, of course SBC!
|
type |
Outdoor full color display |
|
Best viewing distance(m) |
107m |
|
Pixel pitch9(mm) |
31.25mm |
|
Pixel density(dot/sqm) |
1024dots/sqm |
|
configuration |
1R1G1B |
|
Unit box pixel(dots) |
24dots×24dots |
|
Cabinet size(W×H×T) |
750mm×750mm×60mm |
|
Cabinet weight(kg) |
8.5kg |
|
Brightness(cd/sqm) |
More than 2000cd/sqm |
|
Refresh frame frequency |
More than 800HZ |
|
MTBF(H) |
More than 10000H |
|
Maximum power consumption(W/sqm) |
Less than400Wsqm |
|
Average power consumption(W/sqm) |
Less than 200 W/sqm |
|
Left/right viewing angle9(degree) |
140° |
|
Grey scale |
More than 12bit |
|
Display color |
16777216colors |
|
Brightness adjust |
256 grade automatic,100 grade manual |
|
IP standard |
IP65 |
|
Display module brightness uniformity |
Less than 5 percent |
|
Pixel out of control rate(dots) |
Less than 1/100000dots |
|
Life span(H) |
More than 100000H |
|
Operate voltage |
AC220V/50HZ and AC110V/60HZ available |
|
System working environment temperature(°C) |
-20°C to +60°C |
|
System working environment humidity |
10percentRH to 90percentRH |
|
Control distance Without repeater |
Unshielded twisted-pair LAN cable transmission within 100m |
|
Multi-mode optical fibre:500m,mono-mode optical fibre can be 20km |
